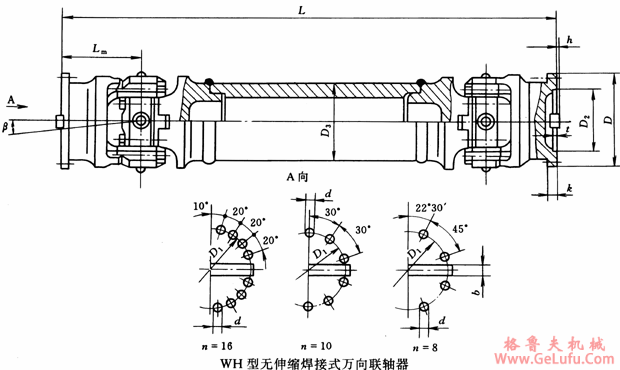

WH型无伸缩焊接式万向联轴器外形及安装尺寸（JB/T3242-93） 格鲁夫机械
格鲁夫
|
型号 |
回转
直径
D |
公称转
矩Tn/
kN・m |
疲劳转
矩Tf/
kN・m |
轴线折
角β/
(°)≤ |
Lmin |
Lm |
D1 |
D2
(H7) |
D3 |
k |
t |
b
(h9) |
h |
n-d |
转动惯量
I/kg・m2 |
质量m/kg | ||
|
Lmin |
增长100 |
Lmin |
增长100 | |||||||||||||||
|
SWZ160WH |
160 |
18 |
9 |
≤10 |
580 |
120 |
138 |
95 |
114 |
15 |
5 |
20 |
6 |
8-13 |
0.176 |
0.008 |
61 |
3.02 |
|
SWZ190WH |
190 |
31.5 |
16 |
650 |
135 |
165 |
115 |
133 |
17 |
5 |
25 |
7 |
8-15 |
0.392 |
0.015 |
96 |
4.11 | |
|
SWZ220WH |
220 |
45 |
22 |
760 |
155 |
190 |
130 |
159 |
20 |
6 |
32 |
9 |
8-17 |
0.824 |
0.031 |
151 |
5.96 | |
|
SWZ260WH |
260 |
80 |
40 |
880 |
180 |
228 |
155 |
194 |
25 |
6 |
40 |
12.5 |
8-19 |
1.893 |
0.061 |
248 |
7.82 | |
|
SWZ300WH |
300 |
125 |
63 |
1010 |
215 |
260 |
180 |
219 |
30 |
7 |
40 |
15 |
10-23 |
3.885 |
0.095 |
319 |
9.37 | |
|
SWZ350WH |
350 |
200 |
100 |
1120 |
235 |
310 |
210 |
273 |
35 |
8 |
50 |
16 |
10-23 |
8.309 |
0.216 |
590 |
13.62 | |
|
SWZ400WH |
400 |
280 |
140 |
1270 |
270 |
358 |
240 |
299 |
40 |
8 |
70 |
18 |
10-25 |
15.81 |
0.347 |
862 |
18.72 | |
|
SWZ420WH |
420 |
355 |
180 |
1350 |
295 |
376 |
255 |
325 |
42 |
10 |
80 |
20 |
16-28 |
21.697 |
0.432 |
940 |
19.18 | |
|
SWZ450WH |
450 |
450 |
224 |
1450 |
300 |
400 |
270 |
351 |
44 |
10 |
80 |
20 |
16-28 |
28.967 |
0.586 |
1256 |
22.31 | |
|
SWZ500WH |
500 |
600 |
315 |
1630 |
340 |
445 |
300 |
377 |
47 |
12 |
90 |
22.5 |
16-31 |
49.12 |
0.854 |
1725 |
28.76 | |
|
SWZ550WH |
550 |
800 |
400 |
1710 |
355 |
492 |
320 |
426 |
50 |
12 |
100 |
22.5 |
16-31 |
76.478 |
1.272 |
2213 |
32.87 | |
