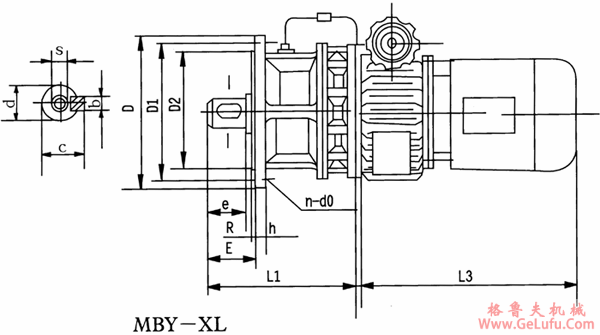

MBY一XL外型及机型号
fax:0312-6784733
格鲁夫
|
机型号 |
D |
D1 |
D2 |
E |
h |
R |
n |
do |
d |
b |
c |
e |
s |
L1 |
M |
L3 |
|
X1 |
160 |
134 |
100h9 |
32 |
12 |
3 |
4 |
9 |
18h6 |
6 |
20.5 |
25 |
M6 |
132 |
20 |
由所配MBLY的L3决定 |
|
X2 |
180 |
160 |
130h9 |
42 |
12 |
3 |
6 |
9 |
25h6 |
8 |
28 |
34 |
M8 |
156 |
21.5 | |
|
X3 |
230 |
200 |
170h9 |
52 |
15 |
4 |
6 |
11 |
35h6 |
10 |
38.5 |
45 |
M8 |
192 |
21.5 | |
|
X4 |
260 |
230 |
200h9 |
81 |
15 |
4 |
6 |
11 |
45h6 |
14 |
48.5 |
63 |
M8 |
240 |
25 | |
|
X5 |
340 |
310 |
270h9 |
90 |
20 |
4 |
6 |
11 |
55h6 |
16 |
59 |
79 |
M10 |
310 |
27 | |
|
X6 |
400 |
360 |
316h9 |
91 |
22 |
5 |
8 |
15 |
65h6 |
18 |
69 |
80 |
M12 |
353 |
27 | |
|
X7 |
430 |
390 |
345h9 |
112 |
22 |
5 |
8 |
18 |
80h6 |
22 |
85 |
100 |
M12 |
391 |
27 | |
|
X8 |
490 |
450 |
400h9 |
111 |
30 |
6 |
12 |
18 |
90h6 |
25 |
95 |
110 |
M16 |
446 |
23 | |
|
X9 |
580 |
520 |
455h9 |
169 |
35 |
8 |
12 |
22 |
100h6 |
28 |
106 |
130 |
M20 |
552 |
25 | |
|
X10 |
650 |
590 |
520h9 |
174 |
40 |
10 |
12 |
22 |
110h6 |
32 |
117 |
140 |
M24 |
610 |
25 |
