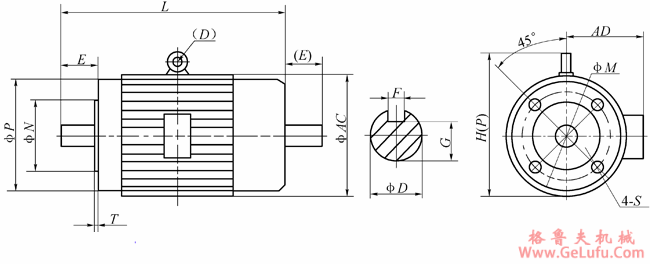

电机型号尺寸（MT）
Mobile:13331225020
| 型号 | 规格 | 功率 | 外形特征 | 安装尺寸及公差 | 外观尺寸 | ||||||||||||||
| (KW) | 机座 | 凸缘 | D | E | F | G | M | N | S | T | AC | AD | H(b) | L | |||||
| CS2.5-MT | Y2-632-4 | 0.18 | 63 | FT75 | 11 | +0.008 -0.003 | 23 | 4 | 0 -0.030 | 8.5 | 75 | 60 | +0.012 -0.007 | M5 | 2.5 | 130 | 70 | - | 230 |
| CS5-MT | Y2-801-4 | 0.55 | 80 | FT100 | 19 | ±0.310 | 40 | 6 | 0 -0.030 | 15.5 | 100 | 80 | +0.012 -0.007 | M6 | 3.0 | 175 | 145 | - | 295 |
| CS10-MT | Y2-90S-4 | 1.1 | 90S | FT115 | 24 | ±0.310 | 50 | 8 | 0 -0.036 | 20 | 115 | 95 | +0.013 -0.009 | M8 | 3.0 | 195 | 155 | - | 320 |
| CS25-MT | Y2-100L-4 | 3 | 100L | FT130 | 28 | ±0.370 | 60 | 8 | 0 -0.036 | 24 | 130 | 100 | +0.013 -0.009 | M8 | 3.5 | 215 | 180 | 245 | 385 |
| CS50-MT | Y2-112M-4 | 4 | 112M | FT130 | 28 | ±0.370 | 60 | 8 | 0 -0.036 | 24 | 130 | 100 | +0.013 -0.009 | M8 | 3.5 | 240 | 190 | 263 | 400 |
