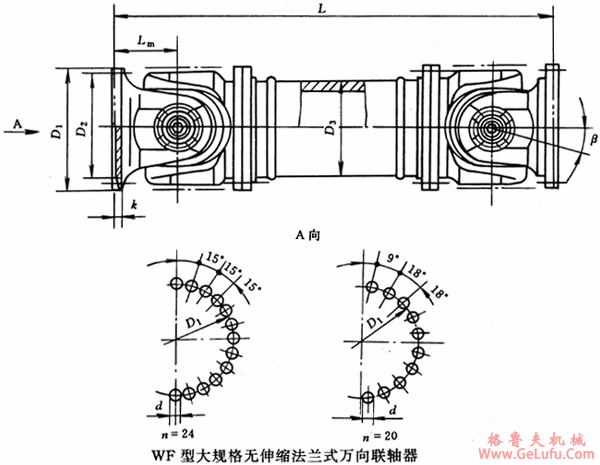

WF型大规格无伸缩法兰式万向联轴器外形安装尺寸（JB/T5513-91） Mobile:13331225020
电话：0312-6784766
|
型号 |
回转直
径D |
公称转矩
Tn/kN・m |
疲劳转矩
Tf/kN・m |
轴线折角
β≤ |
Lmin |
D1
(js11) |
D2 |
Lm |
n-d |
k | ||
|
β=5° |
β=10° |
β=5° |
β=10° | |||||||||
|
SWC680WF |
680 |
1400 |
710 |
5°, 10° |
1840 |
1940 |
635 |
550 |
335 |
360 |
24-25 |
55 |
|
SWC780WF |
780 |
2500 |
1250 |
1980 |
2120 |
725 |
640 |
370 |
405 |
24-31 |
62 | |
|
SWC840WF |
840 |
3150 |
1600 |
2200 |
2420 |
775 |
710 |
425 |
480 |
24-38 |
70 | |
|
SWC920WF |
920 |
4000 |
2000 |
2340 |
2420 |
855 |
760 |
460 |
480 |
24-38 |
80 | |
|
SWC1000WF |
1000 |
5000 |
2500 |
2560 |
2640 |
915 |
840 |
515 |
535 |
20-50 |
90 | |
|
SWC1100WF |
1100 |
6300 |
3150 |
2880 |
3200 |
1015 |
920 |
570 |
600 |
20-50 |
100 | |
|
SWC1200WF |
1200 |
8000 |
4000 |
3080 |
3240 |
1100 |
1000 |
620 |
660 |
20-58 |
110 | |
