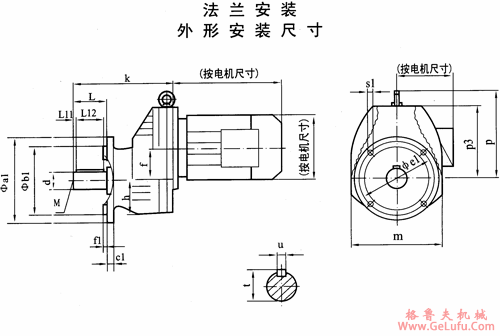

TXRXF57-TXRXF107斜齿轮减速电机法兰安装外形安装尺寸 格鲁夫减速机
WX:grove_company
|
型号 |
a1 |
b1 |
e1 |
f1 |
c1 |
L |
L11 |
L12 |
h |
k |
d |
u |
t |
p3 |
p |
m |
s1 |
M |
|
TXRXF-57 |
140 |
95 |
115 |
3 |
10 |
40 |
5 |
32 |
62 |
174 |
20 |
6 |
22.5 |
139 |
- |
162 |
9 |
M6 |
|
TXRXF-67 |
160 |
110 |
130 |
3.5 |
10 |
50 |
3.5 |
40 |
70 |
201 |
25 |
8 |
28 |
147 |
- |
175 |
9 |
M10 |
|
TXRXF-77 |
200 |
130 |
165 |
3.5 |
12 |
60 |
3.5 |
50 |
78 |
227 |
30 |
8 |
33 |
181 |
221 |
210 |
11 |
M10 |
|
TXRXF-87 |
250 |
180 |
215 |
4 |
15 |
80 |
5 |
70 |
98 |
269 |
40 |
12 |
43 |
232 |
272 |
272 |
13.5 |
M16 |
|
TXRXF-97 |
300 |
230 |
265 |
4 |
16 |
100 |
10 |
80 |
118 |
316 |
50 |
14 |
53.5 |
281 |
328 |
328 |
13.5 |
M16 |
|
TXRXF-107 |
350 |
250 |
300 |
5 |
18 |
120 |
5 |
110 |
135 |
364 |
60 |
18 |
64 |
319 |
366 |
370 |
17.5 |
M20 |
