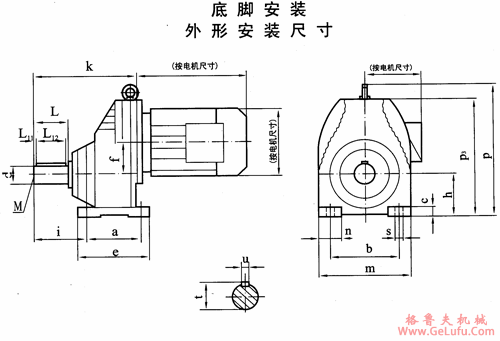

TXRX57-TXRX107斜齿轮减速电机底脚安装外形安装尺寸
gelufu.com.cn
www.gelufu.com
|
型号 |
a |
b |
c |
e |
f |
h |
i |
k |
m |
n |
p |
p3 |
s |
d |
L |
L11 |
L12 |
t |
u |
M |
|
TXRX-57 |
110 |
125 |
18 |
137 |
52 |
63 |
56 |
174 |
156 |
31 |
- |
202 |
11 |
20 |
40 |
3.5 |
32 |
22.5 |
6 |
M6 |
|
TXRX-67 |
120 |
135 |
20 |
150 |
60 |
80 |
75 |
201 |
170 |
35 |
- |
226 |
13.5 |
25 |
50 |
3.5 |
40 |
28 |
8 |
M10 |
|
TXRX-77 |
150 |
170 |
25 |
190 |
72 |
90 |
85 |
227 |
204 |
50 |
311 |
271 |
17.5 |
30 |
60 |
3.5 |
50 |
33 |
8 |
M10 |
|
TXRX-87 |
160 |
215 |
30 |
206 |
93.5 |
100 |
110 |
269 |
266 |
60 |
372 |
332 |
17.5 |
40 |
80 |
5 |
70 |
43 |
12 |
M16 |
|
TXRX-97 |
185 |
250 |
35 |
240 |
116 |
112 |
140 |
316 |
320 |
70 |
440 |
393 |
22 |
50 |
100 |
10 |
80 |
53.5 |
14 |
M16 |
|
TXRX-107 |
210 |
310 |
45 |
260 |
130 |
140 |
152 |
364 |
360 |
80 |
506 |
459 |
22 |
60 |
120 |
5 |
110 |
64 |
18 |
M20 |
