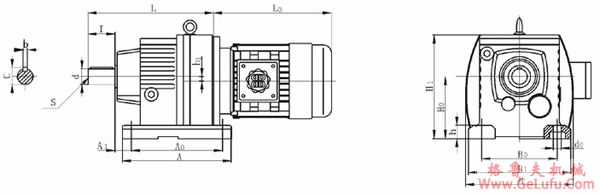

型号 |
安装尺寸 轴伸尺寸 外型尺寸 | ||||||||||||||||
|
Ho |
Ao |
Bo |
A1 |
do |
d(k6) |
b |
c |
I |
S |
L |
A |
B |
H1 |
B1 |
h |
h1 | |
|
DR32DR33 |
90 |
130 |
110 |
27 |
9 |
25 |
8 |
28 |
50 |
M10 |
201 |
160 |
161 |
149 |
145 |
18 |
4.9 |
|
DR42DR43 |
115 |
165 |
135 |
30 |
13.5 |
30 |
8 |
33 |
60 |
M10 |
235 |
195 |
184 |
190 |
170 |
24 |
15.4 |
|
DR62DR63 |
130 |
195 |
150 |
30 |
13.5 |
35 |
10 |
38 |
70 |
M12 |
280 |
235 |
221 |
215 |
210 |
20 |
19.4 |
|
DR72DR73 |
140 |
205 |
170 |
35 |
17.5 |
40 |
12 |
43 |
80 |
M16 |
300 |
245 |
241 |
234 |
230 |
30 |
9.9 |
|
DR82DR83 |
180 |
260 |
215 |
40 |
17.5 |
50 |
14 |
53.5 |
100 |
M16 |
372 |
310 |
303 |
298 |
290 |
45 |
16.8 |
|
DR92DR93 |
225 |
310 |
250 |
40 |
22 |
60 |
18 |
64 |
120 |
M20 |
440 |
365 |
354 |
368 |
340 |
55 |
11.2 |
|
DR102DR103 |
250 |
370 |
290 |
45 |
26 |
70 |
20 |
74.5 |
140 |
M20 |
495 |
440 |
415 |
411 |
400 |
65 |
24.4 |
|
DR132DR132 |
315 |
410 |
340 |
50 |
33 |
90 |
25 |
95 |
170 |
M20 |
589 |
494 |
464 |
505 |
450 |
70 |
35.2 |
|
DR142DR143 |
355 |
500 |
380 |
50 |
39 |
110 |
28 |
116 |
210 |
M24 |
695 |
594 |
548 |
569 |
530 |
80 |
41 |
|
DR162DR163 |
425 |
580 |
500 |
60 |
39 |
120 |
32 |
127 |
210 |
M24 |
790 |
670 |
670 |
648 |
660 |
100 |
59.9 |
