型号 |
安装尺寸 |
轴伸尺寸 |

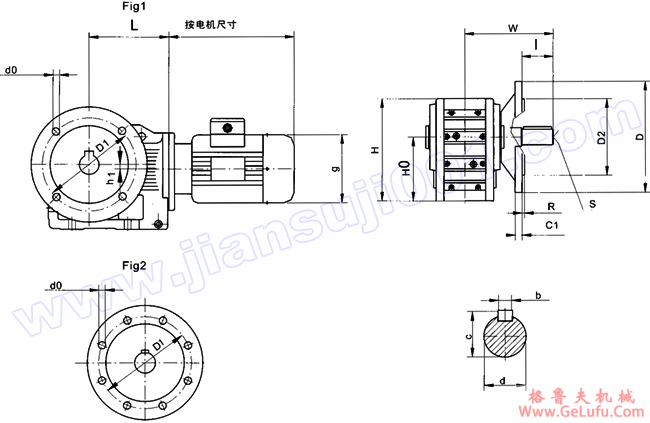

外形尺寸 | ||||||||||||||
|
H0 |
S |
R |
D1 |
d0 |
Fig |
D2 |
b |
d |
l |
c |
L1 |
W |
D |
h1 |
C1 |
H | |
|
WKF37 |
100 |
M10 |
3.5 |
130 |
4-ф9 |
1 |
110h7 |
8 |
25k6 |
50 |
28 |
142 |
134 |
160 |
8.5 |
10 |
165 |
|
WKF47 |
112 |
M10 |
3.5 |
165 |
4-ф9 |
1 |
130h7 |
8 |
30k6 |
60 |
33 |
166 |
160 |
200 |
7.2 |
12 |
186 |
|
WKF57 |
132 |
M12 |
4 |
215 |
4-ф13.5 |
1 |
180h7 |
10 |
40k6 |
70 |
38 |
175 |
177 |
250 |
13.1 |
15 |
215 |
|
WKF67 |
140 |
M16 |
4 |
215 |
4-ф13.5 |
1 |
180h7 |
12 |
40k6 |
80 |
43 |
179 |
193 |
250 |
20 |
15 |
228 |
|
WKF77 |
150 |
M16 |
4 |
265 |
4-ф13.5 |
1 |
230h7 |
14 |
50k6 |
100 |
53.5 |
202 |
242 |
300 |
31.3 |
16 |
288 |
|
WKF87 |
212 |
M20 |
5 |
300 |
4-ф18 |
1 |
250h7 |
18 |
60m6 |
120 |
64 |
257 |
270 |
350 |
24 |
18 |
340 |
|
WKF97 |
265 |
M20 |
5 |
400 |
4-ф18 |
2 |
350h7 |
20 |
70m6 |
140 |
74.5 |
277 |
332 |
450 |
32.3 |
22 |
414 |
|
WKF107 |
315 |
M24 |
5 |
400 |
4-ф18 |
2 |
350h7 |
25 |
90m6 |
170 |
95 |
354 |
386 |
450 |
52 |
22 |
505 |
