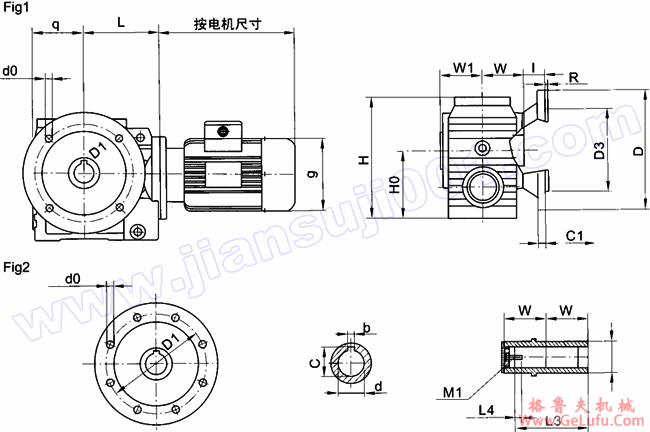

型号 |
安装尺寸 |
轴伸尺寸 |
外形尺寸 | ||||||||||||||||
|
H0 |
D1 |
D3 |
R |
Fig |
d0 |
l |
d |
b |
c |
L3 |
L4 |
M1 |
h1
H |
W1
w |
q
L |
C1 |
D |
D2 | |
|
WSAF37 |
82 |
100 |
80j6 |
3 |
1 |
6.6 |
15 |
20H7 |
6 |
22.8 |
104 |
8 |
M6×16.8－8.8 |
0
143 |
62.5
60 |
63
87 |
8 |
120 |
35 |
|
130 |
110j6 |
3.5 |
9 |
10 |
160 | ||||||||||||||
|
WSAF47 |
100 |
130 |
110j6 |
3.5 |
1 |
9 |
24 |
25H7 |
8 |
28.3 |
105 |
17 |
M10×25－8.8 |
8
179 |
63
60 |
75
110 |
10 |
160 |
45 |
|
30H7 |
8 |
33.3 |
105 |
17 |
M10×25－8.8 | ||||||||||||||
|
WSAF57 |
112 |
165 |
130j6 |
3.5 |
1 |
11 |
25 |
30H7 |
8 |
33.3 |
132 |
17 |
M10×25－8.8 |
13
189 |
78
75 |
80
120 |
12 |
200 |
50 |
|
35H7 |
10 |
38.3 |
132 |
22 |
M12×30－8.8 | ||||||||||||||
|
WSAF67 |
140 |
165 |
130j6 |
3.5 |
1 |
11 |
42.5 |
40H7 |
12 |
43.3 |
144 |
29 |
M16×40－8.8 |
20
238 |
87
84 |
105
138 |
12 |
200 |
65 |
|
45H7 |
14 |
48.8 |
144 |
29 |
M16×40－8.8 | ||||||||||||||
|
WSAF77 |
182 |
215 |
180j6 |
4 |
1 |
13.5 |
45.5 |
50H7 |
14 |
53.8 |
183 |
32 |
M16×45－8.8 |
30
301 |
108
105 |
125
162 |
15 |
250 |
80 |
|
60H7 |
18 |
64.4 |
180 |
37 |
M20×50－8.8 | ||||||||||||||
|
WSAF87 |
225 |
300 |
250h6 |
5 |
1 |
17.5 |
52.5 |
60H7 |
18 |
64.4 |
220 |
36 |
M20×50－8.8 |
35
368 |
128
125 |
150
196 |
18 |
350 |
95 |
|
70H7 |
20 |
74.9 |
220 |
34 |
M20×50－8.8 | ||||||||||||||
|
WSAF97 |
280 |
400 |
350h6 |
5 |
2 |
17.5 |
60 |
70H7 |
20 |
74.9 |
260 |
34 |
M20×50－8.8 |
50
455 |
149
145 |
180
233 |
22 |
450 |
120 |
|
90H7 |
25 |
95.4 |
225 |
41 |
M20×60－8.8 | ||||||||||||||
