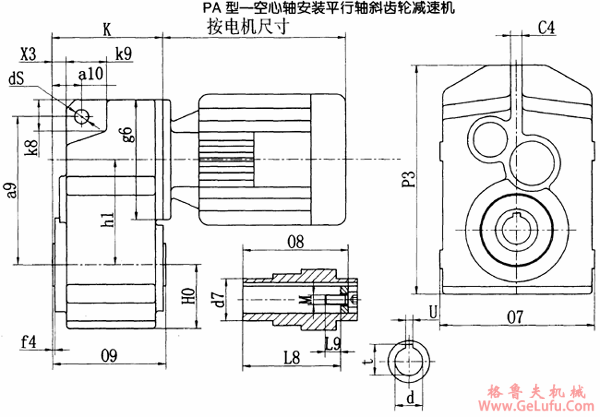

PA……空心轴安装平行轴斜齿轮减速机安装尺寸 格鲁夫减速机
fax:0312-6784733
|
机型号 |
a9
a10 |
c4
f4 |
g6 |
h1 |
k8
k9 |
07
08 |
09
P3 |
ds
H0 |
X3 |
d |
k |
d7 |
L8 |
L9 |
t
U |
M |
|
PA37 |
158
31.5 |
12
2.5 |
120 |
112 |
30
46 |
169
120 |
123
252 |
14
76 |
15 |
30H7 |
127 |
45 |
105 |
17 |
33.3
8 |
M10 |
|
PA47 |
170
32 |
12
3 |
120 |
128.1 |
22
64 |
185
150 |
153
269 |
14
77 |
12 |
35H7 |
151 |
50 |
132 |
22 |
38.3
10 |
M12 |
|
PA67 |
218
41 |
16
3.5 |
160 |
159.5 |
40
65 |
217
180 |
184
343 |
14
97 |
21 |
40H7 |
183 |
55 |
156 |
29 |
43.3
12 |
M16 |
|
PA77 |
278
50 |
20
4 |
200 |
200 |
49
69 |
275
210 |
213
426 |
22
121 |
28 |
50H7 |
224 |
70 |
183 |
32 |
53.8
14 |
M16 |
|
PA87 |
346
62 |
26
4 |
250 |
246.7 |
57
79 |
336
240 |
243
531 |
22
152 |
32 |
60H7 |
255 |
85 |
210 |
36 |
64.4
18 |
M20 |
|
PA97 |
395
70 |
30
4 |
300 |
285 |
88
104 |
405
300 |
303
623 |
26
178 |
34 |
70H7 |
316 |
95 |
270 |
34 |
74.9
20 |
M20 |
|
PA107 |
485
88 |
36
2.5 |
350 |
332.4 |
108
100 |
450
350 |
353
717 |
26
200 |
57 |
90H7 |
354 |
118 |
313 |
40 |
95.4
25 |
M24 |
|
PA127 |
550
110 |
40
2.5 |
450 |
382.6 |
138
125 |
530
410 |
413
856 |
33
237 |
66 |
100H7 |
424 |
135 |
373 |
38 |
106.4
28 |
M24 |
