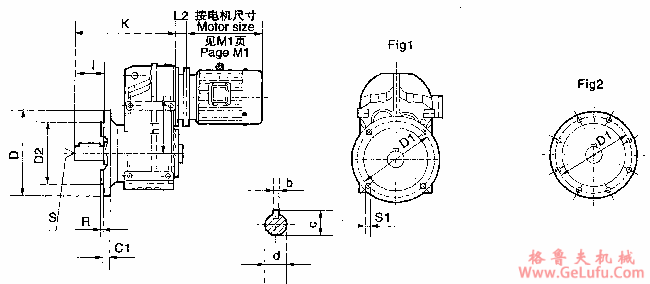

MPF系列平等轴齿轮减速机的安装尺寸 格鲁夫减速机
格鲁夫减速机
|
型号 |
安装尺寸 |
轴伸尺寸 |
外形尺寸 | ||||||||||||
|
D1 |
Fig |
D2 |
R |
S1 |
S |
c |
b |
d |
l |
D |
C1 |
K |
h1 |
L2 | |
|
MPF37 |
130 |
1 |
110h7 |
3.5 |
9 |
M10 |
28 |
8 |
25k6 |
50 |
160 |
10 |
190 |
112 |
电机尺寸 |
|
MPF47 |
165 |
1 |
130h7 |
3.5 |
9 |
M10 |
33 |
8 |
30k6 |
60 |
200 |
12 |
222 |
128.1 | |
|
MPF57 |
215 |
1 |
180h7 |
4 |
13.5 |
M12 |
38 |
10 |
35k6 |
70 |
250 |
15 |
243 |
136 | |
|
MPF67 |
215 |
1 |
180h7 |
4 |
13.5 |
M16 |
43 |
12 |
40k6 |
80 |
250 |
15 |
275 |
159.5 | |
|
MPF77 |
265 |
1 |
230h7 |
4 |
13.5 |
M16 |
53.5 |
14 |
50k6 |
100 |
300 |
16 |
331 |
200 | |
|
MPF87 |
300 |
1 |
250h7 |
5 |
18 |
M20 |
64 |
18 |
60m6 |
120 |
350 |
18 |
379 |
246.7 | |
|
MPF97 |
400 |
2 |
350h7 |
5 |
18 |
M20 |
74.5 |
20 |
70m6 |
140 |
450 |
22 |
454 |
285 | |
|
MPF107 |
400 |
2 |
350h7 |
5 |
18 |
M24 |
95 |
25 |
90m6 |
170 |
450 |
22 |
532 |
332.4 | |
|
MPF127 |
500 |
2 |
450h7 |
5 |
18 |
M24 |
116 |
28 |
110m6 |
210 |
550 |
25 |
637 |
382.6 | |
|
MPF157 |
600 |
2 |
550h7 |
6 |
22 |
M24 |
127 |
32 |
120m6 |
210 |
660 |
28 |
725 |
447 | |
