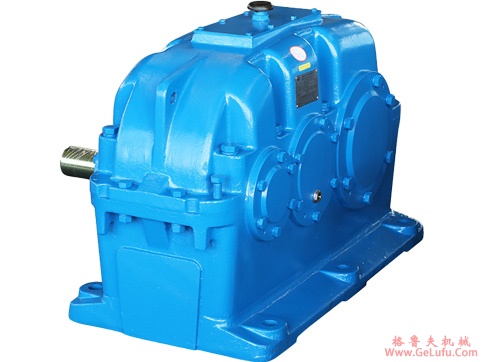

MP..系列平行轴斜齿轮减速机选型参数表(电机功率为1.1KW)
gelufu
|
电动机功率
(kW) |
输出转数
(r/min) |
输出转矩
(N・m) |
传动比
(i) |
使用系数
(fB) |
机型号 |
电机极数 |
重量
(kg) |
fax:0312-6784733
|
1.1 |
0.50
0.58
0.65
0.72
0.83
0.96
1.1
1.2
1.5
1.7
1.8
2.8
3.1 |
19774
17293
15404
13772
12004
10393
9495
8226
6765
6023
5403
3564
3194 |
2774
2426
2161
1932
1684
1458
1332
1154
949
845
758
500
448 |
0.86
0.99
1.11
1.24
1.42
1.65
1.80
2.1
2.5
2.8
3.2
4.8
5.4 |
MP157MD97
MPF157MD97
MPA157MD97
MPAF157MD97 |
4P
4P
4P
4P |
1021
1121
1001
1051 |
|
0.70
0.80
0.85
1.0
1.2
1.3 |
14285
12510
11683
9802
8625
7820 |
2004
1755
1639
1375
1210
1097 |
0.80
0.91
0.98
1.16
1.32
1.46 |
MP127MD77
MPF127MD77
MPA127MD77
MPAF127MD77 |
4P
4P
4P
4P |
636
686
601
641 | |
|
1.1
1.3
1.4
1.6
1.9
2.2 |
8903
7813
6979
6109
5361
4484 |
1249
1096
979
857
752
629 |
0.82
0.93
1.05
1.19
1.36
1.63 |
MP107MD77
MPF107MD77
MPA107MD77
MPAF107MD77 |
4P
4P
4P
4P |
386
411
371
391 | |
|
2.0
2.3
2.6
3.0
3.5
3.9 |
4919
4298
3792
3336
2873
2573 |
690
603
532
468
403
361 |
0.83
0.95
1.08
1.22
1.42
1.59 |
MP97MD57
MPF97MD57
MPA97MD57
MPAF97MD57 |
4P
4P
4P
4P |
274
309
269
289 | |
|
3.1
4.1
4.7
5.6 |
3179
2417
2131
1782 |
446
339
299
250 |
0.90
1.18
1.34
1.60 |
MP87MD57
MPF87MD57
MPA87MD57
MPAF87MD57 |
4P
4P
4P
4P |
179
194
169
184 | |
|
2.7
3.1
3.3
3.7 |
3841
3363
3162
2818 |
248.60★
217.70★
204.70★
182.40★ |
1.90
2.2
2.3
2.6 |
MP107
MPF107
MPA107
MPAF107 |
8P
8P
8P
8P |
349
374
334
354 | |
|
3.3
3.7
4.0
4.9
5.3 |
3178
2850
2648
2163
1975 |
275.30★
246.90★
229.40★
187.40
171.10 |
1.29
1.43
1.54
1.89
2.1 |
MP97
MPF97
MPA97
MPAF97 |
6P
6P
6P
6P |
250
285
245
265 | |
|
5.1
5.7
6.1
|
2066
1852
1721
|
275.28★
246.87★
229.38★
|
1.98
2.2
2.4
|
MP97
MPF97
MPA97
MPAF97 |
4P
4P
4P
4P |
246
281
241
261 | |
|
3.4
3.6
4.0
4.6
5.2
5.8 |
3115
2958
2605
2304
2025
1800 |
269.80★
256.20★
225.70★
199.60★
175.40★
155.90★ |
0.92
0.96
1.09
1.24
1.41
1.58 |
MP87
MPF87
MPA87
MPAF87 |
6P
6P
6P
6P |
155
170
145
160 | |
|
5.2
5.5
6.2
7.0
8.0
9.0
11
11 |
2024
1923
1701
1497
1316
1170
996
947 |
269.75★
256.22★
226.68★
199.56★
175.45★
155.93★
132.75
126.26 |
1.41
1.48
1.68
1.90
2.2
2.4
2.9
3.0 |
MP87
MPF87
MPA87
MPAF87 |
4P
4P
4P
4P |
151
166
141
156 | |
|
6.9
7.3
8.3
9.8
11
12
13
15
17
19 |
1528
1430
1263
1068
963
874
816
715
632
563 |
203.70★
190.62★
168.38★
142.27★
128.35
116.49★
108.68★
95.31
84.26
74.98 |
0.93
1.00
1.13
1.33
1.48
1.63
1.75
1.99
2.3
2.5 |
MP77
MPF77
MPA77
MPAF77 |
4P
4P
4P
4P |
99
110
96
102 | |
|
11
13
15
16
17
21
22
25
27 |
921
823
705
671
610
499
468
413
386 |
122.68★
109.75★
93.94
89.42
81.29
66.45
62.33
55.03
51.44★ |
0.85
0.95
1.11
1.16
1.28
1.56
1.67
1.89
2.0 |
MP67
MPF67
MPA67
MPAF67 |
4P
4P
4P
4P |
67
73
64
70 | |
|
33
36
38
41 |
314
294
276
259 |
41.81
39.16
36.73
34.49 |
2.5
2.5
2.8
2.7 |
MP67
MPF67
MPA67
MPAF67 |
4P
4P
4P
4P |
67
73
64
70 | |
|
17
20
21
24
28
32
38
41
47 |
626
537
502
442
369
329
280
259
222 |
83.46
71.63★
66.95★
58.87★
49.17
43.90
37.32
34.49
29.59 |
0.91
1.06
1.13
1.29
1.54
1.73
2.0
2.2
2.6 |
MP57
MPF57
MPA57
MPAF57 |
4P
4P
4P
4P |
56
62
56
61 | |
|
25
29
33
39
41
44
48
51
54
65
70 |
416
360
319
268
253
236
221
207
194
162
151 |
55.40
47.98★
42.47★
35.73
33.76★
31.46★
29.40★
27.53★
25.84★
21.56
20.07★ |
0.91
1.06
1.19
1.42
1.50
1.61
1.72
1.84
1.96
2.3
2.5 |
MP47
MPF47
MPA47
MPAF47 |
4P
4P
4P
4P |
46
49
46
48 | |
|
43
48
59
67
76
81
97
108
119
132
153
177
203
232
263
279
333
374 |
242
217
180
156
137
129
109
98
88
80
69
59
52
45
40
38
32
28 |
32.26
28.95
23.92★
20.82★
18.31★
17.22★
14.49
13.00
11.72
10.60
9.17★
7.90★
6.88★
6.04
5.33
5.01
4.20
3.75 |
0.80
0.87
1.06
1.22
1.38
1.47
1.75
1.95
2.1
2.2
2.4
2.7
2.6
2.8
3.0
3.0
3.3
3.5 |
MP37
MPF37
MPA37
MPAF37 |
4P
4P
4P
4P |
40
42
40
41 |
