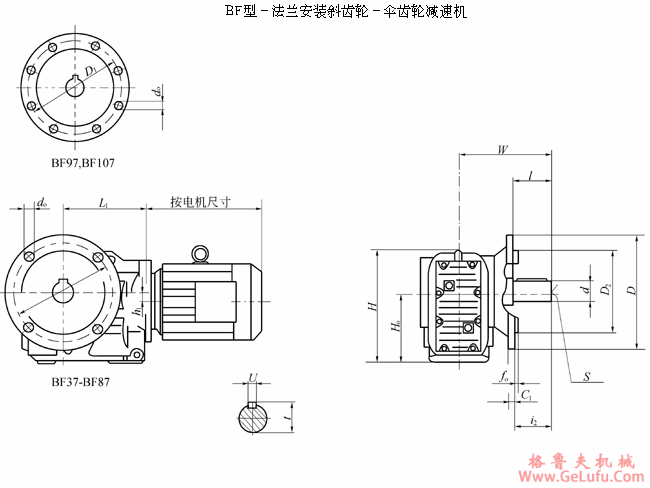

F37―107机型安装尺寸
|
机型号 |
D |
C1 |
H |
D1 |
fo |
Ho |
i2 |
W |
L1 |
S |
t |
do |
l |
U |
h1 |
D2 |
d |
|
BF37 |
160 |
10 |
165 |
130 |
3.5 |
100 |
50 |
134 |
172 |
M10 |
28 |
4-φ9 |
50 |
8 |
8.5 |
110h7 |
25k6 |
|
BF47 |
200 |
12 |
185 |
165 |
3.5 |
112 |
60 |
160 |
206 |
M10 |
33 |
4-φ9 |
60 |
8 |
7.2 |
130h7 |
30k6 |
|
BF67 |
250 |
15 |
226 |
215 |
4 |
140 |
80 |
193 |
225 |
M16 |
43 |
4-φ13.5 |
80 |
12 |
20 |
180h7 |
40k6 |
|
BF77 |
300 |
16 |
286 |
265 |
4 |
180 |
100 |
242 |
255 |
M16 |
53.5 |
4-φ13.5 |
100 |
14 |
31.3 |
230h7 |
50k6 |
|
BF87 |
350 |
18 |
338 |
300 |
5 |
212 |
120 |
270 |
317 |
M20 |
64 |
4-φ18 |
120 |
18 |
25.9 |
250h7 |
60m6 |
|
BF97 |
450 |
22 |
414 |
400 |
5 |
265 |
140 |
332 |
347 |
M20 |
74.5 |
4-φ18 |
140 |
20 |
32.3 |
350h7 |
70m6 |
|
BF107 |
450 |
22 |
505 |
400 |
5 |
315 |
170 |
386 |
430 |
M24 |
95 |
4-φ18 |
170 |
25 |
52 |
350h7 |
90m6 |
注：其它尺寸，请参见BA型
