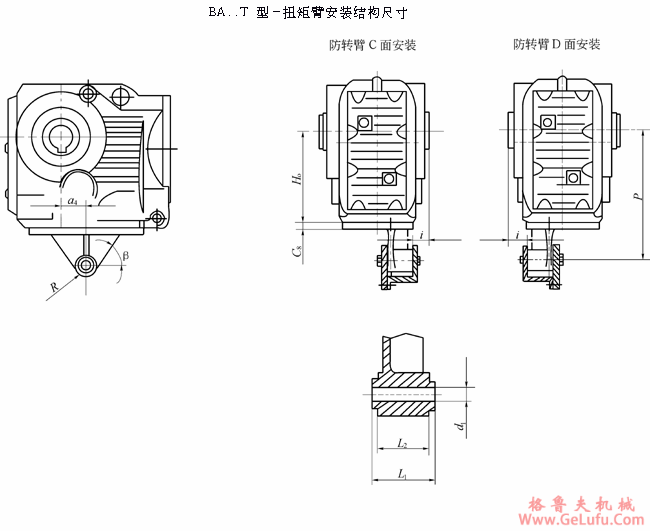

BA..T机型安装结构尺寸
|
机型号 |
a4 |
β |
C8 |
i |
P |
R |
Ho |
d1 |
L10-0.3 |
L2 |
|
BA37T |
23.5 |
60° |
10 |
20 |
140 |
22.5 |
100 |
10.4±0.1 |
36 |
31 |
|
BA47T |
30 |
55° |
12 |
20 |
160 |
22.5 |
112 |
10.4±0.1 |
36 |
31 |
|
BA67T |
45 |
55° |
13 |
25 |
200 |
29 |
140 |
16.4±0.08 |
60 |
54 |
|
BA77T |
52.5 |
60° |
14 |
25 |
250 |
29 |
180 |
16.4±0.08 |
60 |
54 |
|
BA87T |
60 |
60° |
16 |
30 |
300 |
41 |
212 |
25±0.08 |
80 |
72 |
|
BA97T |
70 |
50° |
17 |
40 |
350 |
41 |
265 |
25±0.08 |
100 |
92 |
|
BA107T |
74 |
55° |
20 |
45 |
450 |
41 |
315 |
25±0.08 |
100 |
92 |
|
BA127T |
60 |
65° |
45 |
7 |
550 |
70 |
375 |
40±0.08 |
126 |
110 |
|
BA157T |
50 |
70° |
45 |
2 |
700 |
70 |
450 |
40±0.08 |
126 |
110 |
注：其它尺寸，请参见BA型
