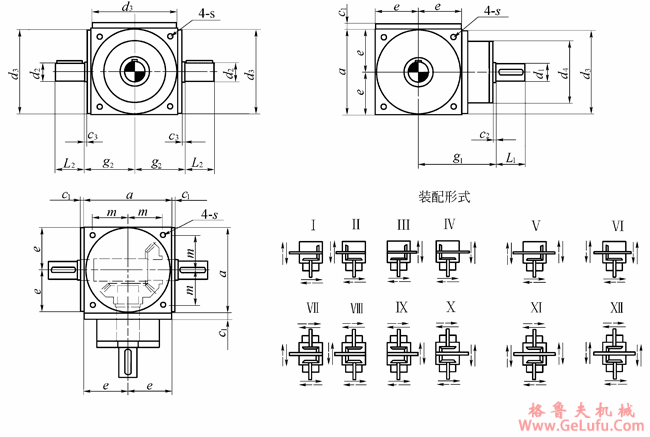

规格 |
a |
c1 |
c2 |
c3 |
轴入轴 |
i=1:1.5 |
i=1:2 | |||
|
d1 js6 |
L1 |
d2 js6 |
L2 |
d2 js6 |
L2 | |||||
|
44 |
90 |
10 |
2 |
2 |
18 |
35 |
16 |
30 |
14 |
25 |
|
55 |
110 |
10 |
2 |
2 |
22 |
40 |
20 |
35 |
18 |
35 |
|
77 |
140 |
10 |
2 |
2 |
32 |
50 |
28 |
45 |
24 |
40 |
|
96 |
170 |
12 |
2 |
2 |
40 |
60 |
38 |
55 |
28 |
45 |
|
112 |
210 |
15 |
2 |
2 |
45 |
70 |
45 |
70 |
38 |
55 |
|
135 |
240 |
15 |
2 |
2 |
55 |
85 |
55 |
85 |
45 |
70 |
|
155 |
280 |
15 |
2 |
2 |
60 |
110 |
60 |
110 |
50 |
80 |
|
规格 |
d3h7 |
d4 |
e |
g1 |
g2 |
m |
s |
重量
kg |
油量
1 |
|
44 |
88 |
72 |
45 |
95 |
57 |
36 |
M6 |
6 |
0.2 |
|
55 |
108 |
81 |
55 |
110 |
67 |
44 |
M8 |
10 |
0.3 |
|
77 |
135 |
98 |
70 |
130 |
82 |
55 |
M10 |
20 |
0.4 |
|
96 |
165 |
118 |
85 |
155 |
100 |
67 |
M12 |
32 |
1 |
|
112 |
205 |
128 |
105 |
190 |
122 |
85 |
M16 |
60 |
2 |
|
135 |
235 |
138 |
120 |
215 |
137 |
95 |
M16 |
75 |
2.5 |
|
155 |
275 |
150 |
140 |
250 |
157 |
110 |
M16 |
115 |
3 |
|
注：d2可作为输入端，此时，SPS型换向器在许用速度范围内可作换向传动 | |||||||||
