格鲁夫丝杆升降机
|

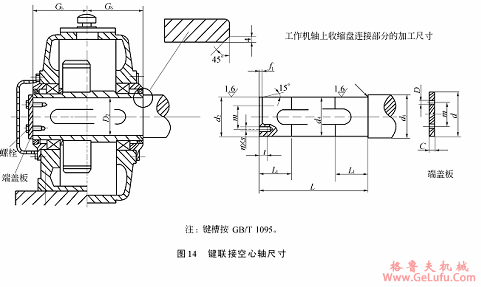

规格 |
工作机轴 |
端盖饭 |
空心轴 |
螺栓 | ||||||||||||||||
|
d2
(h6) |
d4 |
d5 |
f1 |
L |
L |
L1 |
r |
S |
t |
c |
D |
d |
m |
D2
(H7) |
G6 |
G6 |
g |
S |
n | |
|
04 |
110 |
109.5 |
124 |
5 |
388 |
438 |
50 |
1.6 |
M12 |
20 |
10 |
13.5 |
130 |
75 |
110 |
195 |
220 |
46 |
M12×25 |
2 |
|
05 |
125 |
124.5 |
136 |
6 |
388 |
― |
55 |
2.5 |
M12 |
20 |
12 |
13.5 |
150 |
85 |
125 |
195 |
― |
46 |
M12×30 |
2 |
|
06 |
140 |
139.5 |
152 |
6 |
488 |
488 |
60 |
2.5 |
M12 |
20 |
12 |
13.5 |
160 |
100 |
140 |
245 |
245 |
52 |
M12×30 |
2 |
|
07 |
160 |
159.5 |
172 |
7 |
488 |
558 |
65 |
2.5 |
M16 |
28 |
15 |
17.5 |
200 |
120 |
160 |
245 |
280 |
52 |
M16×40 |
2 |
|
08 |
180 |
179.5 |
196 |
7 |
518 |
― |
75 |
2.5 |
M16 |
28 |
15 |
17.5 |
220 |
130 |
180 |
260 |
― |
52 |
M16×40 |
2 |
|
09 |
200 |
199.5 |
216 |
8 |
668 |
668 |
85 |
3 |
M16 |
28 |
18 |
17.5 |
240 |
150 |
200 |
335 |
335 |
52 |
M16×40 |
2 |
|
10 |
220 |
219.5 |
238 |
8 |
717 |
767 |
100 |
3 |
M20 |
38 |
25 |
22 |
260 |
160 |
220 |
360 |
385 |
68 |
M20×55 |
4 |
|
11 |
240 |
239.5 |
260 |
8 |
717 |
― |
110 |
4 |
M20 |
38 |
25 |
22 |
290 |
180 |
240 |
360 |
― |
68 |
M20×55 |
4 |
|
12 |
260 |
259.5 |
280 |
9 |
876 |
876 |
115 |
4 |
M20 |
38 |
25 |
22 |
310 |
200 |
260 |
440 |
440 |
68 |
M20×55 |
4 |
|
13 |
280 |
279.5 |
300 |
9 |
876 |
916 |
120 |
4 |
M20 |
38 |
25 |
22 |
330 |
210 |
280 |
460 |
440 |
68 |
M20×55 |
4 |
|
用于R2、RMK2、RMD2、RHK2、RHD2型。 | ||||||||||||||||||||
