ADC系列摆线减速机尺寸图表AHHM-9235～9265
格鲁夫齿轮箱
微信：grove_company
|

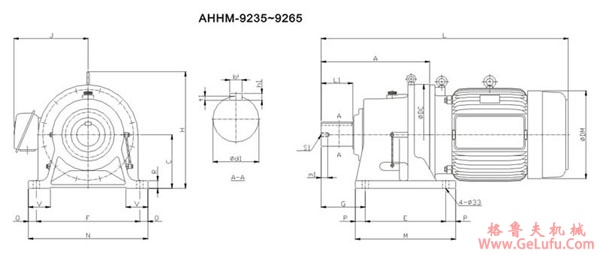

AHHM-9235～9265尺寸图表 | ||||||||||||||||||||
|
AHHM |
A |
C |
DC |
E |
F |
G |
M |
N |
P |
Q |
R |
V |
d |
输出轴尺寸 | ||||||
|
d1 |
L1 |
b1 |
h1 |
t1 |
S1 |
m1 | ||||||||||||||
|
9235 |
628 |
300 |
591 |
460 |
580 |
260 |
562 |
672 |
51 |
46 |
45 |
120 |
33 |
130 |
200 |
32 |
18 |
11 |
M24 |
41 |
|
9245 |
657 |
335 |
637 |
480 |
630 |
263 |
582 |
722 |
51 |
46 |
45 |
130 |
39 |
140 |
200 |
36 |
20 |
12 |
M24 |
41 |
|
9255 |
775 |
375 |
703 |
520 |
670 |
320 |
630 |
780 |
55 |
55 |
50 |
140 |
39 |
160 |
240 |
40 |
22 |
13 |
M30 |
49 |
|
9265 |
892 |
400 |
772 |
590 |
770 |
390 |
700 |
880 |
55 |
55 |
55 |
160 |
45 |
170 |
300 |
40 |
22 |
13 |
M30 |
49 |
|
型号 |
电机 |
L |
J |
DM |
H |
W（KG） | ||
|
KW |
HP |
极数 | ||||||
|
AHHM20/6-9235-Ratio |
15 |
20 |
6 |
1200 |
306 |
382 |
667 |
700 |
|
AHHM25/6-9235-Ratio |
18.5 |
25 |
6 |
1240 |
306 |
382 |
667 |
700 |
|
AHHM30/6-9235-Ratio |
22 |
30 |
6 |
1240 |
306 |
382 |
667 |
700 |
|
AHHM40/6-9235-Ratio |
30 |
40 |
6 |
1400 |
340 |
420 |
667 |
745 |
|
AHHM50/6-9235-Ratio |
37 |
50 |
6 |
1400 |
340 |
420 |
667 |
745 |
|
AHHM60/6-9235-Ratio |
45 |
60 |
6 |
1465 |
388 |
458 |
667 |
835 |
|
AHHM75/6-9235-Ratio |
55 |
75 |
6 |
1495 |
515 |
542 |
667 |
888 |
|
AHHM20/6-9245-Ratio |
15 |
20 |
6 |
1226 |
306 |
382 |
729 |
820 |
|
AHHM25/6-9245-Ratio |
18.5 |
25 |
6 |
1265 |
306 |
382 |
729 |
820 |
|
AHHM30/6-9245-Ratio |
22 |
30 |
6 |
1265 |
306 |
382 |
729 |
820 |
|
AHHM40/6-9245-Ratio |
30 |
40 |
6 |
1345 |
340 |
420 |
729 |
865 |
|
AHHM50/6-9245-Ratio |
37 |
50 |
6 |
1345 |
340 |
420 |
729 |
865 |
|
AHHM60/6-9245-Ratio |
45 |
60 |
6 |
1385 |
388 |
458 |
729 |
955 |
|
AHHM75/6-9245-Ratio |
55 |
75 |
6 |
1575 |
515 |
542 |
729 |
1005 |
|
AHHM20/6-9255-Ratio |
15 |
20 |
6 |
1355 |
306 |
382 |
815 |
1135 |
|
AHHM25/6-9255-Ratio |
18.5 |
25 |
6 |
1390 |
306 |
382 |
815 |
1150 |
|
AHHM30/6-9255-Ratio |
22 |
30 |
6 |
1390 |
306 |
382 |
815 |
1150 |
|
AHHM40/6-9255-Ratio |
30 |
40 |
6 |
1453 |
340 |
420 |
815 |
1195 |
|
AHHM50/6-9255-Ratio |
37 |
50 |
6 |
1453 |
340 |
420 |
815 |
1195 |
|
AHHM60/6-9255-Ratio |
45 |
60 |
6 |
1491 |
388 |
458 |
815 |
1275 |
|
AHHM75/6-9255-Ratio |
55 |
75 |
6 |
1540 |
515 |
542 |
815 |
1330 |
|
AHHM40/6-9265-Ratio |
30 |
40 |
6 |
1570 |
340 |
420 |
874 |
1440 |
|
AHHM50/6-9265-Ratio |
37 |
50 |
6 |
1570 |
340 |
420 |
874 |
1440 |
|
AHHM60/6-9265-Ratio |
45 |
60 |
6 |
1610 |
388 |
458 |
874 |
1535 |
