YP型带传动减速器外形尺寸
mail:china@gelufu.com
格鲁夫齿轮箱
|
机型号 |

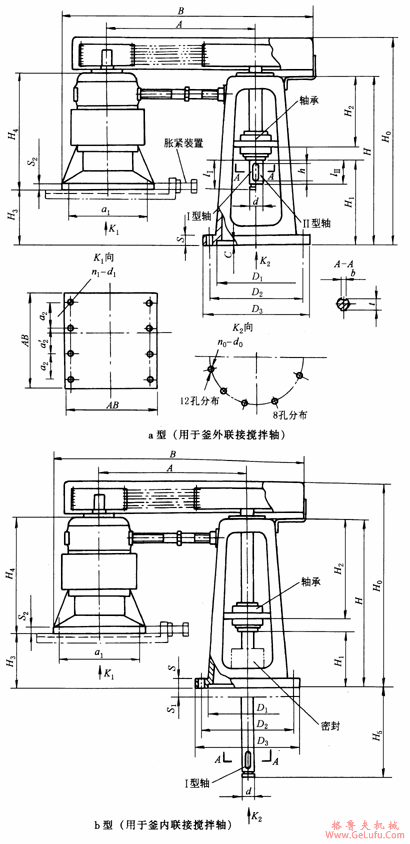

外形及安装尺寸 |
a型尺寸 |
b型尺寸 | ||||||||||||||||||||||||||
|
高强力型带 |
窄V带 |
B |
H2 |
H4 |
h |
lⅠ |
lⅡ |
D1
(H9) |
D2 |
D3 |
n0-d0 |
S |
S2 |
C |
a1 |
a2 |
a2’ |
n1-d1 |
AB |
H0 |
H |
H1 |
H3 |
H0 |
H |
H1 |
H3 |
H5 |
S1 |
|
YPD8-65 |
YPV7-65 |
3000
2380 |
640 |
1199 |
150 |
220 |
160 |
730 |
830 |
900 |
8-φ27 |
30 |
30 |
6 |
900 |
300 |
300 |
8-φ27 |
1000 |
1836 |
1530 |
700 |
320 |
1550 |
1150 |
320 |
0 |
700 |
35 |
|
YPD8-75 |
YPV7-75 |
3000
2380 |
640 |
1199 |
150 |
220 |
160 |
840 |
940 |
1010 |
8-φ30 |
36 |
30 |
8 |
900 |
300 |
300 |
8-φ27 |
1000 |
1866 |
1530 |
700 |
320 |
1550 |
1150 |
320 |
0 |
700 |
40 |
|
YPD8-95 |
YPV8-95 |
3200
2566 |
750 |
1199 |
180 |
240 |
220 |
840 |
940 |
1010 |
8-φ30 |
36 |
30 |
8 |
900 |
300 |
300 |
8-φ27 |
1000 |
2075 |
1680 |
798 |
524 |
1580 |
1182 |
300 |
26 |
800 |
40 |
|
YPD8-115 |
YPV9-115 |
3200
2566 |
870 |
1299 |
180 |
240 |
220 |
970 |
1080 |
1150 |
12-φ30 |
38 |
30 |
8 |
900 |
300 |
300 |
8-φ27 |
1000 |
2306 |
1950 |
860 |
690 |
1650 |
1288 |
300 |
28 |
800 |
45 |
|
YPD8-130 |
YPV9-130 |
3450
2566 | |||||||||||||||||||||||||||
|
|
YPV10-130
YPV10-155
YPV10-200 |
4100 |
1300 |
1360 |
220
180 |
260
240 |
230
220 |
1200 |
1330 |
1410 |
12-φ30 |
50 |
35 |
10 |
1000 |
340 |
320 |
8-φ27 |
1120 |
2920 |
2500 |
990 |
1280 |
2170 |
1750 |
240 |
530 |
800 |
50 |
|
|
YPV11-250
YPV11-280 |
4100 |
1300 |
1740 |
270
230 |
330
300 |
280
250 |
1300 |
1550 |
1600 |
12-φ34 |
60 |
35 |
10 |
1310 |
400 |
400 |
8-φ28 |
1310 |
3100 |
2500 |
990 |
850 |
2200 |
1750 |
240 |
100 |
800 |
60 |
|
|
YPV12-320
YPV12-380 |
4100 |
1300 |
1725 |
270
230 |
330
300 |
280
250 |
1300 |
1550 |
1600 |
12-φ34 |
60 |
35 |
10 |
1310 |
400 |
400 |
8-φ28 |
1310 |
3100 |
2500 |
990 |
850 |
2200 |
1750 |
240 |
100 |
800 |
60 |
