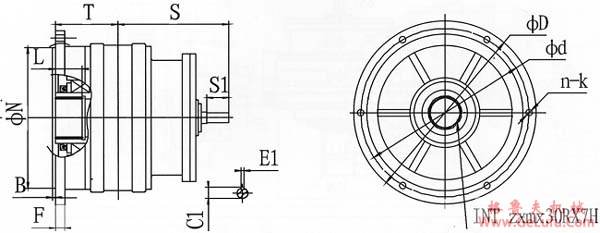

NWYK系列三环减速器尺寸图表
|
规格 |
额定输
出转矩
（kN.m） |
轮廓尺寸 |
联接尺寸 |
质量
（kg） | |||||||
|
D |
S |
T |
N |
B |
d |
D |
n-k |
F | |||
|
215 |
4 |
460 |
270 |
180 |
350 |
6 |
390 |
460 |
6-￠22 |
20 |
200 |
|
255 |
7 |
530 |
315 |
280 |
420 |
6 |
460 |
530 |
6-￠22 |
25 |
250 |
|
300 |
11 |
650 |
385 |
220 |
510 |
6 |
560 |
650 |
6-￠26 |
30 |
440 |
|
350 |
16 |
730 |
410 |
230 |
600 |
8 |
650 |
730 |
6-￠26 |
30 |
660 |
|
400 |
25 |
800 |
435 |
250 |
670 |
8 |
720 |
800 |
6-￠26 |
35 |
900 |
|
450 |
36 |
820 |
475 |
260 |
680 |
8 |
730 |
820 |
6-￠32 |
35 |
1240 |
|
500 |
48 |
930 |
540 |
290 |
780 |
8 |
840 |
930 |
6-￠38 |
40 |
1650 |
|
550 |
68 |
1030 |
580 |
340 |
870 |
8 |
930 |
1030 |
8-￠38 |
45 |
2150 |
|
600 |
95 |
1170 |
640 |
380 |
1000 |
10 |
1080 |
1170 |
8-￠44 |
50 |
3010 |
|
670 |
123 |
1270 |
734 |
400 |
1080 |
10 |
1180 |
1270 |
8-￠44 |
55 |
4070 |
|
750 |
173 |
1490 |
785 |
420 |
1320 |
10 |
1400 |
1490 |
8-￠50 |
60 |
5200 |
|
规格 |
高速轴伸（1≥i≥95.9） |
高速轴伸（i≥107） |
渐开线花键INT Zxmx30Rx7H | ||||||||
|
d1 |
S1 |
C1 |
E1 |
d1 |
S1 |
C1 |
E1 |
z |
m |
L | |
|
215 |
35k6 |
58 |
38 |
10 |
28k6 |
42 |
25 |
6 |
30 |
2.5 |
50 |
|
255 |
35k6 |
58 |
38 |
10 |
28k6 |
42 |
25 |
6 |
38 |
2.5 |
65 |
|
300 |
42k6 |
82 |
45 |
12 |
35k6 |
58 |
38 |
10 |
40 |
3 |
80 |
|
350 |
48m6 |
82 |
51.5 |
14 |
42m6 |
82 |
45 |
12 |
48 |
3 |
100 |
|
400 |
55m6 |
82 |
59 |
16 |
48m6 |
82 |
51.5 |
14 |
56 |
3 |
100 |
|
450 |
65m6 |
105 |
69 |
18 |
55m6 |
105 |
59 |
16 |
48 |
4 |
120 |
|
500 |
70m6 |
105 |
74.9 |
20 |
65m6 |
105 |
64 |
18 |
48 |
4 |
120 |
|
550 |
75m6 |
105 |
79.5 |
20 |
65m6 |
105 |
69 |
18 |
56 |
4 |
140 |
|
600 |
80m6 |
130 |
85 |
22 |
70m6 |
105 |
74.5 |
20 |
56 |
4 |
140 |
|
670 |
90m6 |
130 |
95 |
25 |
80m6 |
130 |
85 |
22 |
62 |
5 |
165 |
|
750 |
100m6 |
165 |
106 |
28 |
90m6 |
130 |
95 |
25 |
46 |
6 |
190 |
