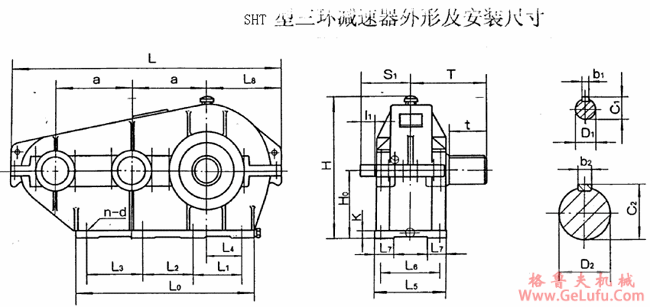

SHT型三环减速机型式与主要尺寸 格鲁夫齿轮箱
fax:0312-6784733
|
规格 |
中心尺寸 |
输廓尺寸 |
地脚螺栓 | |||||||||||||
|
a |
H0 |
H |
L |
L0 |
L5 |
L8 |
d |
n |
k |
L1 |
L2 |
L3 |
L4 |
L6 |
L7 | |
|
125 |
125 |
115 |
258 |
455 |
300 |
140 |
125 |
M12 |
4 |
16 |
240 |
|
|
80 |
110 |
40 |
|
145 |
145 |
130 |
291 |
530 |
350 |
175 |
148 |
M16 |
4 |
18 |
280 |
|
|
85 |
130 |
50 |
|
175 |
175 |
165 |
367 |
652 |
420 |
200 |
185 |
M16 |
4 |
20 |
340 |
|
|
90 |
150 |
60 |
|
215 |
215 |
200 |
433 |
780 |
510 |
240 |
220 |
M20 |
4 |
25 |
410 |
|
|
100 |
185 |
65 |
|
255 |
255 |
230 |
493 |
915 |
600 |
260 |
255 |
M20 |
6 |
25 |
230 |
270 |
|
120 |
210 |
70 |
|
300 |
300 |
280 |
585 |
1075 |
710 |
300 |
295 |
M24 |
6 |
30 |
280 |
310 |
|
150 |
235 |
80 |
|
350 |
350 |
325 |
678 |
1250 |
830 |
340 |
350 |
M24 |
6 |
35 |
330 |
370 |
|
180 |
270 |
90 |
|
400 |
400 |
355 |
740 |
1440 |
950 |
370 |
400 |
M24 |
8 |
40 |
200 |
340 |
290 |
220 |
310 |
100 |
|
规格 |
高速轴伸 |
低速轴伸 |
重量kg | ||||||||
|
D! |
I1 |
s1 |
c1 |
b1 |
D2 |
t |
T |
c2 |
b2 | ||
|
125 |
18j6 |
28 |
100 |
20.5 |
6 |
38k6 |
58 |
130 |
41 |
10 |
53 |
|
145 |
22J6 |
36 |
115 |
24.5 |
6 |
48k6 |
82 |
160 |
51.5 |
14 |
89 |
|
175 |
30j6 |
58 |
150 |
33 |
8 |
60m6 |
105 |
203 |
64 |
18 |
|
|
215 |
35k6 |
58 |
165 |
38 |
10 |
75m6 |
105 |
215 |
79.5 |
20 |
204 |
|
255 |
45k6 |
82 |
195 |
48.5 |
14 |
90m6 |
130 |
245 |
95 |
25 |
310 |
|
300 |
50k6 |
82 |
215 |
53.5 |
14 |
110m6 |
165 |
315 |
116 |
28 |
528 |
|
350 |
55k6 |
82 |
240 |
59 |
16 |
130m6 |
200 |
365 |
137 |
32 |
708 |
|
400 |
65m6 |
105 |
290 |
69 |
18 |
150m6 |
200 |
395 |
158 |
36 |
1020 |
