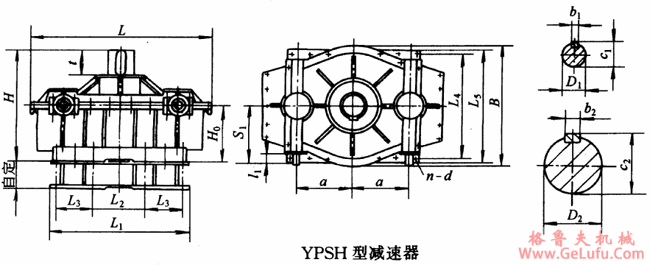

YPSH型三环减速机型式与主要尺寸 Mobile:13331225020
Mobile:13331225020
|
规格 |
中心尺寸 |
轮廓尺寸 |
地脚螺栓 |
输入轴伸i≤137.5 |
输入轴伸i≥144.9 |
输出轴伸 |
质量m/kg | ||||||||||||||||||||
|
a |
H0 |
L |
B |
H |
L1 |
L2 |
L3 |
L4 |
L5 |
d |
n |
D1 |
l1 |
c1 |
b1 |
S1 |
D1 |
l1 |
c1 |
b1 |
S1 |
D2(m6) |
t |
c2 |
b2 | ||
|
215 |
215 |
250 |
690 |
450 |
480 |
580 |
500 |
|
350 |
400 |
M20 |
4 |
28j6 |
42 |
31 |
8 |
340 |
18j6 |
28 |
20.5 |
6 |
320 |
75 |
100 |
79.5 |
20 |
300 |
|
255 |
255 |
280 |
810 |
530 |
535 |
690 |
590 |
|
410 |
460 |
M20 |
4 |
35k6 |
58 |
38 |
10 |
405 |
22j6 |
36 |
24.5 |
6 |
365 |
90 |
110 |
95 |
25 |
443 |
|
300 |
300 |
315 |
960 |
620 |
620 |
810 |
680 |
|
470 |
530 |
M24 |
4 |
42k6 |
82 |
45 |
12 |
450 |
28j6 |
42 |
31 |
8 |
425 |
110 |
130 |
116 |
28 |
785 |
|
350 |
350 |
355 |
1100 |
730 |
710 |
920 |
780 |
|
570 |
630 |
M24 |
4 |
48k6 |
82 |
51.5 |
14 |
450 |
35k6 |
58 |
38 |
10 |
450 |
130 |
160 |
137 |
32 |
1046 |
|
400 |
400 |
400 |
1280 |
850 |
798 |
1050 |
700 |
200 |
670 |
740 |
M24 |
8 |
55m6 |
82 |
59 |
16 |
489 |
42k6 |
82 |
45 |
12 |
466 |
150 |
160 |
158 |
36 |
1495 |
|
450 |
450 |
450 |
1440 |
970 |
910 |
1220 |
740 |
300 |
740 |
840 |
M30 |
8 |
60m6 |
105 |
64 |
16 |
508 |
48k6 |
82 |
51.5 |
14 |
485 |
170 |
200 |
179 |
40 |
2050 |
|
500 |
500 |
500 |
1610 |
1080 |
1090 |
1320 |
800 |
320 |
830 |
930 |
M36 |
8 |
70m6 |
105 |
74.9 |
20 |
540 |
55m6 |
82 |
59 |
16 |
517 |
180 |
200 |
190 |
45 |
2770 |
|
550 |
550 |
550 |
1750 |
1200 |
1160 |
1440 |
860 |
360 |
960 |
1070 |
M36 |
8 |
75m6 |
105 |
79.5 |
20 |
575 |
60m6 |
105 |
64 |
18 |
575 |
200 |
240 |
210 |
50 |
3765 |
|
600 |
600 |
600 |
1920 |
1220 |
1280 |
1490 |
940 |
400 |
1020 |
1140 |
M42 |
8 |
80m6 |
130 |
85 |
22 |
680 |
65m6 |
105 |
69 |
18 |
655 |
220 |
240 |
231 |
50 |
4820 |
