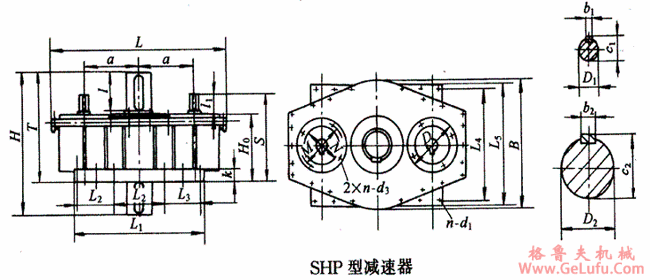

SHP型三环减速机型式与主要尺寸 www.gelufu.com
格鲁夫机械
|
规格 |
中心尺寸 |
轮廓尺寸 |
地脚螺栓 | |||||||||
|
a |
H0 |
L |
B |
H |
n-d1 |
k |
L1 |
L2 |
L3 |
L4 |
L5 | |
|
125 |
125 |
230 |
410 |
250 |
357 |
8-M12 |
35 |
330 |
170 |
60 |
210 |
250 |
|
145 |
145 |
240 |
475 |
290 |
413 |
8-M16 |
40 |
390 |
200 |
70 |
235 |
280 |
|
175 |
175 |
270 |
585 |
365 |
488 |
8-M16 |
45 |
470 |
240 |
90 |
305 |
350 |
|
215 |
215 |
290 |
690 |
430 |
508 |
8-M20 |
50 |
560 |
280 |
110 |
350 |
400 |
|
255 |
255 |
340 |
810 |
500 |
607 |
8-M20 |
55 |
660 |
330 |
130 |
410 |
460 |
|
300 |
300 |
370 |
960 |
580 |
712 |
8-M24 |
60 |
770 |
380 |
150 |
470 |
530 |
|
350 |
350 |
390 |
1110 |
680 |
805 |
8-M24 |
70 |
870 |
420 |
180 |
570 |
630 |
|
400 |
400 |
445 |
1280 |
790 |
860 |
8-M24 |
80 |
990 |
500 |
200 |
670 |
740 |
|
450 |
450 |
485 |
1440 |
900 |
980 |
8-M24 |
90 |
1150 |
440 |
150 |
740 |
840 |
|
规格 |
法兰联接尺寸 |
高速轴伸 |
低速轴伸 |
质量m/kg | |||||||||||
|
D |
M |
N(H8) |
n-d3 |
D1 |
l1 |
S |
c1 |
b1 |
D2 |
l |
T |
c2 |
b2 | ||
|
125 |
145 |
128 |
110 |
4-M8 |
18j6 |
28 |
273 |
20.5 |
6 |
38k6 |
58 |
305 |
41 |
10 |
75 |
|
145 |
170 |
150 |
130 |
4-M10 |
22j6 |
36 |
291 |
25 |
8 |
48k6 |
82 |
337 |
51.5 |
14 |
120 |
|
175 |
215 |
195 |
175 |
6-M10 |
30j6 |
58 |
343 |
33 |
8 |
60m6 |
105 |
390 |
64 |
18 |
170 |
|
215 |
245 |
220 |
195 |
6-M12 |
35j6 |
58 |
363 |
38 |
10 |
75m6 |
105 |
410 |
75.5 |
20 |
250 |
|
255 |
290 |
260 |
230 |
6-M16 |
45k6 |
82 |
437 |
48.5 |
14 |
90m6 |
130 |
485 |
95 |
25 |
370 |
|
300 |
340 |
305 |
270 |
8-M16 |
50k6 |
82 |
467 |
53.5 |
14 |
110m6 |
165 |
555 |
116 |
28 |
550 |
|
350 |
380 |
340 |
300 |
8-M20 |
55m6 |
82 |
492 |
59 |
16 |
130m6 |
200 |
615 |
139 |
32 |
830 |
|
400 |
430 |
390 |
340 |
8-M20 |
65m6 |
105 |
570 |
69 |
18 |
150m6 |
200 |
670 |
158 |
36 |
1330 |
|
450 |
450 |
400 |
350 |
8-M20 |
70m6 |
105 |
610 |
74.5 |
20 |
170m6 |
240 |
750 |
179 |
40 |
2150 |
