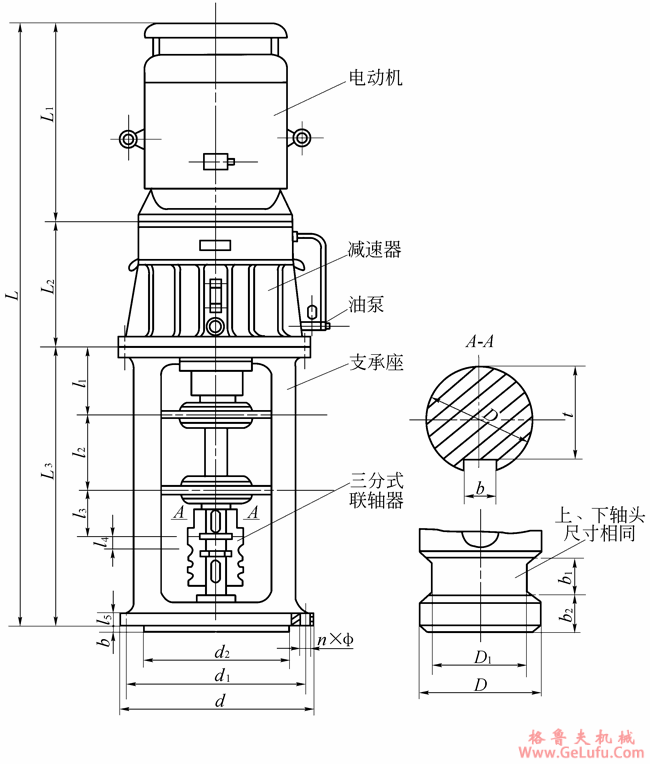

50、70、100m3发酵罐用立式行星齿轮减速机外形及安装尺寸
fax:0312-6784733
WX:grove_company
|
容积(mP3P) |
L |
LB1B |
LB2B |
LB3B |
lB1B |
lB2B |
lB3B |
lB4B |
lB5B |
n×φ | |||||||||
|
50.75 |
3310
3469
3519 |
1005
1164
1214 |
705 |
1600 |
350 |
450 |
300 |
50 |
35 |
16×φ28 | |||||||||
|
100 |
3684
3774 |
1214
1304 |
810 |
1660 |
350 |
480 |
320 |
60 |
40 |
16×φ32 | |||||||||
|
容积(mP3P) |
D
(h7) |
DB1B
(h11) |
b
(JS9) |
t
(0+0.20)
|
bB1B |
bB2B |
d |
dB1B |
dB2B | ||||||||||
|
50.75 |
110 |
100 |
32 |
99 |
10 |
12P+0.11PB0B |
910 |
830 |
700 | ||||||||||
|
100 |
130 |
118 |
36 |
118 |
12 |
14P+0.14PB0B |
1120 |
1020 |
950 | ||||||||||
