无段变速机系列的负载表
Tel:0312-6784766
传真：0312-6784733
|
TYPE |
RATIO RANGE |
Allowable Output torque
(kgw)at input rpm |
aPProx
Welght
kg | |
|
UP to 1500 |
1500~1800 | |||
|
D002A(4M) |
1/1.4~1/8.4 |
0.15~0.3 |
0.13~0.25 |
5(13) |
|
D002F(4M) |
6(14) | |||
|
D004A(4M) |
0.3~0.6 |
0.25~0.5 |
12(24) | |
|
D004F(4M) |
13(25) | |||
|
D007A(4M) |
0.6~1.2 |
0.5~1 |
18(33) | |
|
D007F(4M) |
20(35) | |||
|
D015A(4M) |
1.2~2.4 |
1~2 |
32(55) | |
|
D015F(4M) |
35(58) | |||
|
D022A(4M) |
1.8~3.6 |
1.5~3 |
60(86) | |
|
D022F(4M) |
65(91) | |||
|
D037A(4M) |
3~6 |
2.5~5 |
64(103) | |
|
D037F(4M) |
69(1080) | |||
|
D055A(4M) |
4.5~9 |
3.8~7.5 |
1169178) | |
|
D055F(4M) |
126(1880) | |||
|
D075A(4M) |
6~12 |
5~10 |
116(1910) | |
|
D075F(4M) |
126(201) | |||
|
TYPE |
RATIO RANGE |
Allowable Output torque
(kgw)at input rpm |
aPProx
Welght
kg | |
|
UP to 1500 |
1500~1800 | |||
|

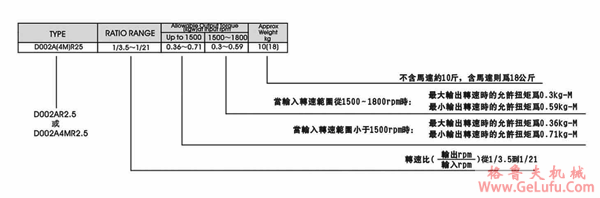

D002A(4M)R2.5 |
1/3.5~1/21 |
0.36~0.71 |
0.3~0.59 |
10(18) |
|
D004A(4M)R2.5 |
0.71~1.43 |
0.59~1.19 |
17(28) | |
|
D007A(4M)R2.5 |
1.43~2.85 |
1.19~2.38 |
23(38) | |
|
D015A(4M)R2.5 |
2.85~5.7 |
2.38~4.75 |
40(63) | |
|
D022A(4M)R2.5 |
4.28~8.55 |
3.56~7.13 |
71(97) | |
|
D037A(4M)R2.5 |
7.13~14.3 |
5.94~11.9 |
75(115) | |
|
D055A(4M)R2.5 |
10.7~21.4 |
8.9~17.8 |
190(225) | |
|
D075A(4M)R2.5 |
14.3~28.5 |
11.9~23.8 |
190(265) | |
|
TYPE |
RATIO RANGE |
Allowable Output torque
(kgw)at input rpm |
aPProx
Welght
kg | |
|
UP to 1500 |
1500~1800 | |||
|
D002A(4M)R5 |
1/7~1/42 |
0.71~1.43 |
0.59~1.19 |
10(18) |
|
D004A(4M)R5 |
4.43~2.85 |
1.19~2.38 |
17(28) | |
|
D007A(4M)R5 |
2.85~5.7 |
2.38~4.75 |
23(38) | |
|
D015A(4M)R5 |
5.7~11.4 |
4.75~9.5 |
40(63) | |
|
D022A(4M)R5 |
8.5~17.1 |
7.13~14.3 |
71(97) | |
|
D037A(4M)R5 |
14.3~28.5 |
11.9~23.8 |
75(115) | |
|
D055A(4M)R5 |
21.4~42.8 |
17.8~35.6 |
190(225) | |
|
D075A(4M)R5 |
28.5~57 |
23.8~47.5 |
190(265) | |
