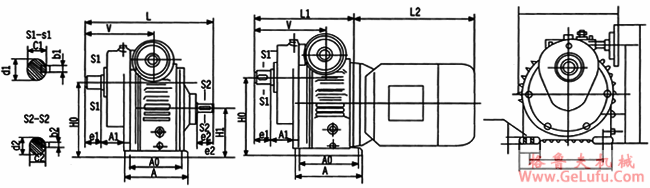

MBW―C、MBWY―C基型配一级齿轮型卧式外形安装尺寸 gelufu.com.cn
Mobile:13331225020
|
机型号 |
中心高 |
安装尺寸 |
轴伸联接尺寸 |
外形尺寸 | ||||||||||||||||||||||
|
H0 |
A0 |
A1 |
B0 |
B1 |
h |
n |
do |
输出轴 |
输入轴 |
H |
H1 |
H2 |
B |
W |
A |
V |
双轴型 |
直联型 | ||||||||
|
d1 |
b1 |
c1 |
e1 |
d2 |
b2 |
c2 |
e2 |
L1 |
L1 |
L2 | ||||||||||||||||
|
02 |
120 |
105 |
57 |
110 |
25 |
13 |
4 |
9 |
20js6 |
6 |
22.5 |
30 |
14js6 |
5 |
16 |
25 |
200 |
75 |
160 |
140 |
162 |
125 |
137 |
234 |
170 |
200 |
|
04 |
135 |
105 |
59 |
120 |
30 |
15 |
4 |
10 |
20js6 |
6 |
22.5 |
30 |
14js6 |
5 |
16 |
30 |
226 |
90 |
186 |
160 |
190 |
135 |
141 |
247 |
171 |
235 |
|
07 |
166 |
125 |
69 |
160 |
40 |
15 |
4 |
12 |
28js6 |
8 |
31 |
35 |
19js6 |
6 |
21.5 |
30 |
260 |
106 |
215 |
190 |
202 |
150 |
158 |
272 |
209 |
245 |
|
15 |
190 |
140 |
78 |
180 |
50 |
18 |
4 |
12 |
30js6 |
8 |
33 |
45 |
24js6 |
8 |
27 |
40 |
313 |
125 |
246 |
230 |
252 |
165 |
178 |
336 |
245 |
285 |
|
22 |
230 |
230 |
93 |
245 |
55 |
20 |
4 |
14 |
40k6 |
12 |
43 |
60 |
24js6 |
8 |
27 |
50 |
355 |
150 |
300 |
300 |
286 |
270 |
234 |
425 |
306 |
320 |
|
40 |
230 |
230 |
93 |
245 |
55 |
20 |
4 |
14 |
40k6 |
12 |
43 |
60 |
24js6 |
8 |
27 |
50 |
355 |
150 |
300 |
300 |
286 |
270 |
234 |
425 |
306 |
340 |
|
55 |
320 |
250 |
157 |
315 |
70 |
30 |
4 |
18 |
50k6 |
14 |
53.5 |
82 |
32js6 |
10 |
35 |
60 |
475 |
200 |
389 |
365 |
400 |
290 |
347 |
603 |
455 |
395 |
|
75 |
320 |
250 |
157 |
315 |
70 |
30 |
4 |
18 |
50k6 |
14 |
53.5 |
82 |
32js6 |
10 |
35 |
60 |
475 |
200 |
389 |
365 |
400 |
290 |
347 |
603 |
455 |
435 |
