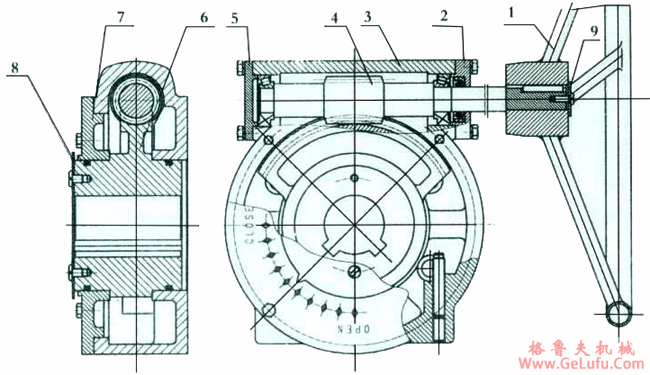

9 |
小档圈 |
1 |
45GB699-88 |
|
|
8 |
指示盘 |
1 |
Q235A GB700-88 |
铝板 |
|
7 |
大盖 |
1 |
HT200GB9439-88 |
WCB GB12229-88 |
|
6 |
蜗轮 |
1 |
QT500-7GB1348-88 |
|
|
5 |
左端盖 |
3 |
GT200GB9439-88 |
WCB GB12229-88 |
|
4 |
蜗杆 |
3 |
45GB699-88 |
|
|
3 |
壳体 |
1 |
HT200GB9439-88 |
WCB GB12229-88 |
|
2 |
右端盖 |
1 |
HT200GB9439-88 |
WCB GB12229-88 |
|
1 |
手轮 |
1 |
HT200GB9439-88 |
WCB GB12229-88 |
|
序号 |
名称 |
数量 |
材料 |
可选材料 |
|

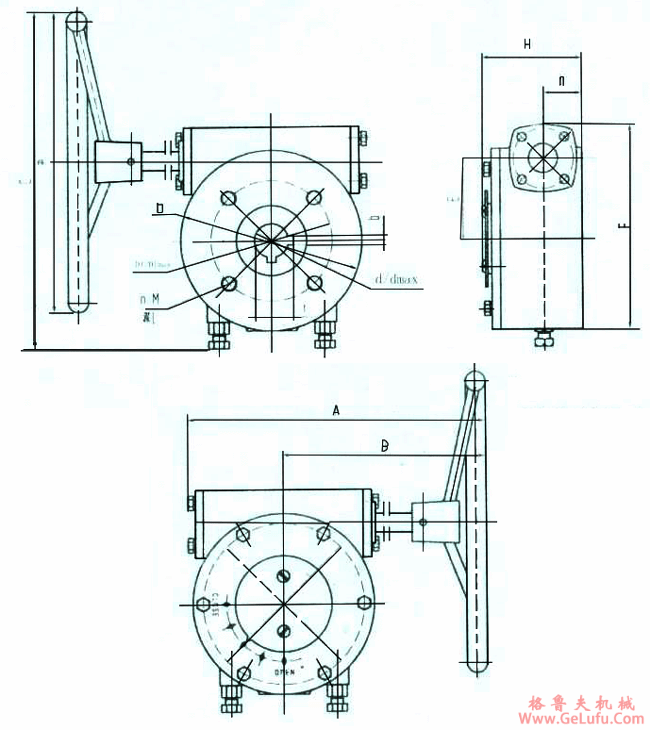

型号 |
适用通径ND |
d |
dmax |
b |
t+0.2 |
D |
D1 |
D1max |
n-M×L |
A |
B |
C |
E |
F |
H |
h |
φ |
输出扭矩NM |
重理kg |
|
XGJ30 |
200 |
22.2 |
30 |
5 |
24.5 |
142 |
89 |
120 |
14-M12×15 |
341 |
254 |
312 |
63 |
195 |
90 |
37 |
300 |
1000 |
13 |
|
250 |
28.6 |
8 |
31.9 | ||||||||||||||||
|
XGJ50 |
300～350 |
31.8 |
45 |
8 |
35.0 |
180 |
108 |
140 |
14-12×18 |
346 |
254 |
335 |
80 |
220 |
101 |
38.5 |
300 |
1400 |
17 |
|
XGJ80 |
400 |
33.3 |
78 |
10 |
36.6 |
225 |
158.75 |
200 |
14-M16×26 |
470 |
342 |
467 |
120 |
310 |
120 |
55 |
400 |
2500 |
38 |
|
450 |
38.1 |
41.5 | |||||||||||||||||
|
XGJ70 |
500 |
41.3 |
84 |
10 |
44.6
55.1 |
260 |
165 |
216 |
14-M18×25 |
558 |
428 |
610 |
126 |
296 |
120 |
52 |
705 |
4500 |
45 |
|
600 |
50.8 |
16 |
14-M20×25 |
