项目
型号 |
扭矩
kgf-m |
最大径向
负荷kgf |
最大转数
RPM |
惯性效果CD
kg-cm |
扭转刚性
kgf-m/rad |
轴向弹簧
常数kgf/mm |
重量
kg |
|
T41-23PF04 |
3.4 |
15 |
47000 |
18 |
0.09×10 |
2.1 |
1.2 |
|
T41-32PF04 |
9.2 |
25 |
39000 |
44 |
0.28×10 |
3.0 |
1.9 |
|
T41-35PF04 |
18 |
56 |
34000 |
84 |
0.62×10 |
7.2 |
2.9 |
|
T41-42PF04 |
25 |
83 |
30000 |
148 |
0.95×10 |
8.5 |
4.1 |
|
T41-50PF04 |
43 |
120 |
25000 |
396 |
1.74×10 |
11.1 |
7.1 |
|
T41-58PF04 |
79 |
180 |
22000 |
800 |
2.82×10 |
15.6 |
10.8 |
|
T41-74PF04 |
130 |
270 |
19000 |
1680 |
5.62×10 |
18.1 |
16.3 |
|
T41-83PF04 |
210 |
380 |
16000 |
3400 |
8.89×10 |
22.4 |
24.7 |
|
T41-95PF04 |
340 |
450 |
15000 |
5600 |
13.13×10 |
23.9 |
32.5 |
|
T41-109PF04 |
500 |
610 |
13000 |
11200 |
18.96×10 |
27.4 |
50.0 |
|
T41-118PF04 |
650 |
710 |
11000 |
20400 |
26.05×10 |
28.6 |
75 |
|

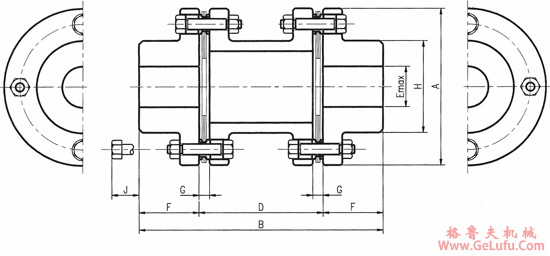

项目
型号 |
A |
B |
D |
Emax |
F |
G |
H |
J |
孔径 |
|
T41-23PF04 |
67 |
139.4 |
88.9 |
23 |
25.4 |
6.1 |
33 |
13 |
8 |
|
T41-32PF04 |
81 |
139.4 |
88.9 |
32 |
25.4 |
6.6 |
46 |
16 |
10 |
|
T41-35PF04 |
93 |
159.0 |
101.6 |
35 |
28.7 |
8.4 |
51 |
22 |
10 |
|
T41-42PF04 |
104 |
194.0 |
127.0 |
42 |
33.5 |
11.2 |
61 |
20 |
10 |
|
T41-50PF04 |
126 |
209.2 |
127.0 |
50 |
41.1 |
11.7 |
71 |
25 |
16 |
|
T41-58PF04 |
143 |
222.6 |
127.0 |
58 |
47.8 |
11.7 |
84 |
28 |
16 |
|
T41-74PF04 |
168 |
241.4 |
127.0 |
74 |
57.2 |
16.8 |
106 |
23 |
25 |
|
T41-83PF04 |
194 |
266.7 |
139.7 |
83 |
63.5 |
17.0 |
119 |
30 |
25 |
|
T41-95PF04 |
214 |
304.8 |
152.4 |
95 |
76.2 |
21.6 |
137 |
22 |
45 |
|
T41-109PF04 |
246 |
355.6 |
177.8 |
109 |
88.9 |
23.9 |
157 |
23 |
50 |
|
T41-118PF04 |
276 |
381.0 |
177.8 |
118 |
101.6 |
27.2 |
170 |
40 |
50 |
