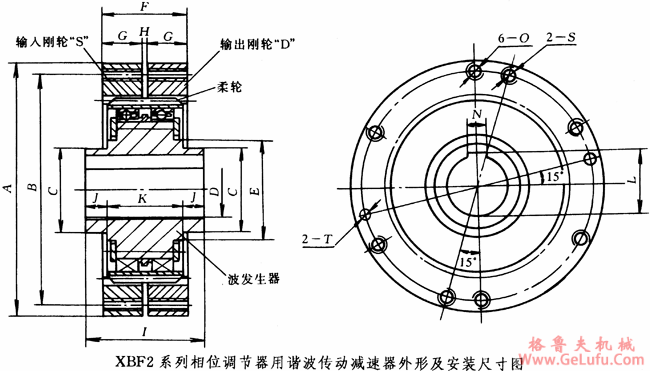

机型 |
传动比 |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
N |
L |
O |
S |
T |
|
50 |
80 120
84 100 126 |
φ70-0.010-0.029 |
φ62 |
φ20±0.0065 |
φ12+0.0180 |
φ24 |
25 |
12 |
1 |
38 |
8.25 |
21.5 |
4±0.015 |
13.8 |
M4 |
M4 |
φ4+0.120 |
|
60 |
10 120 150 |
φ85-0.012-0.034 |
φ75 |
φ30±0.0065 |
φ20+0.0210 |
φ33 |
29 |
14 |
1 |
40 |
7.5 |
25 |
6±0.015 |
22.8 |
M5 |
M5 |
φ5+0.0120 |
|
60 |
80 160 |
φ87-0.012-0.034 |
φ77 |
φ30±0.0065 |
φ20+0.0210 |
φ36 |
29 |
14 |
1 |
40 |
7 |
26 |
6±0.015 |
22.8 |
M5 |
M5 |
φ5+0.0120 |
|
80 |
80 100 135
160 200 |
φ115-0.012-0.034 |
φ100 |
φ40±0.008 |
φ30+0.0210 |
φ46 |
37 |
18 |
1 |
50 |
10 |
30 |
8±0.018 |
33.3 |
M6 |
M6 |
φ5+0.0120 |
|
100 |
84 100 125 168
80 160 |
φ135-0.014-0.039 |
φ120 |
φ50±0.008 |
φ35+0.0250 |
φ56 |
43 |
21 |
1 |
68 |
12 |
44 |
10±0.018 |
38.3 |
M8 |
M8 |
φ8+0.0150 |
|
120 |
80 160 100
120 150 200 |
φ170-0.014-0.039 |
φ150 |
φ60±0.0095 |
φ40+0.0250 |
φ68 |
53 |
26 |
1 |
78 |
12 |
54 |
12±0.021 |
43.3 |
M10 |
M10 |
φ10+0.0180 |
|
160 |
80 135 200
100 160 |
φ220-0.015-0.044 |
φ195 |
φ70±0.0095 |
φ50+0.0250 |
|
71 |
35 |
1 |
87 |
14 |
59 |
14±0.021 |
53.8 |
M12 |
M12 |
φ12+0.0180 |
|
200 |
100 120 160
200 250 315 |
φ270-0.017-0.049 |
φ240 |
φ90±0.011 |
φ65+0.0300 |
|
83 |
41 |
1 |
106 |
16 |
74 |
18±0.021 |
69.4 |
M16 |
M16 |
φ16+0.0180 |
|
250 |
100 120 150
160 200 250 315 |
φ330-0.017-0.049 |
φ295 |
φ110±0.011 |
φ80+0.0300 |
|
101 |
50 |
1 |
130 |
19 |
92 |
22±0.026 |
85.4 |
M20 |
M20 |
φ20+0.0200 |
