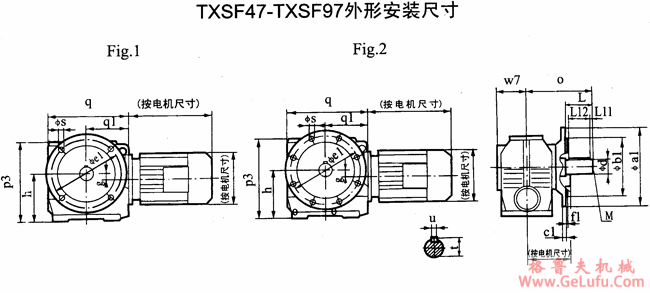

TXSF47-TXSF97斜齿轮―蜗轮减速电机外形安装尺寸 mail:china@gelufu.com
邮箱：china@gelufu.com
|
型号 |
a1 |
b1 |
e1 |
Fig |
S |
h |
f1 |
c1 |
p3 |
q |
q1 |
g |
w7 |
o |
L |
L11 |
L12 |
d |
u |
t |
M |
|
TXSF47 |
160 |
110 |
130 |
1 |
9 |
100 |
3.5 |
10 |
179 |
171 |
96 |
8 |
57.5 |
133.5 |
50 |
5 |
40 |
25 |
8 |
28 |
M10 |
|
TXSF57 |
200 |
1130 |
165 |
1 |
11 |
112 |
3.5 |
12 |
189 |
187 |
107 |
20 |
72 |
160 |
60 |
3.5 |
50 |
30 |
8 |
33 |
M10 |
|
TXSF67 |
200 |
130 |
165 |
1 |
11 |
140 |
3.5 |
12 |
236 |
242 |
135 |
22 |
80.5 |
190 |
70 |
7 |
56 |
35 |
10 |
38 |
M12 |
|
TXSF77 |
250 |
180 |
215 |
1 |
13.5 |
180 |
4 |
15 |
301 |
287 |
162 |
34 |
131 |
232 |
90 |
5 |
80 |
45 |
14 |
48.5 |
M16 |
|
TXSF87 |
350 |
250 |
300 |
1 |
17.5 |
225 |
5 |
18 |
368 |
340 |
190 |
37.5 |
145 |
290 |
120 |
5 |
110 |
60 |
18 |
64 |
M20 |
|
TXSF97 |
450 |
350 |
400 |
2 |
17.5 |
280 |
5 |
22 |
455 |
420 |
240 |
52 |
165 |
340 |
140 |
7.5 |
125 |
70 |
20 |
74.5 |
M20 |
