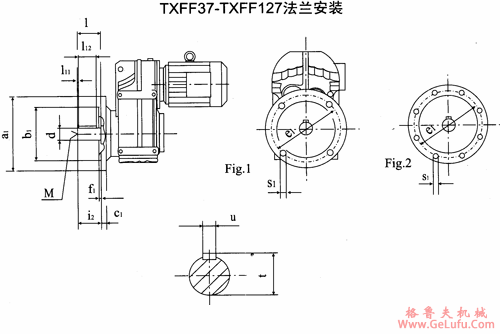

TXFF37-TXFF127型平行轴斜齿轮减速电机外形及安装尺寸
格鲁夫减速机
传真：0312-6784733
|
型号 |
a1 |
Fig |
b1 |
c1 |
e1 |
f1 |
i2 |
s1 |
d |
l11 |
l12 |
t |
u |
M |
|
TXFF37 |
160 |
1 |
110 |
10 |
130 |
3.5 |
50 |
9 |
25 |
5 |
40 |
28 |
8 |
M10 |
|
TXFF47 |
200 |
1 |
130 |
12 |
165 |
3.5 |
60 |
11 |
30 |
3.5 |
50 |
33 |
8 |
M10 |
|
TXFF57 |
250 |
1 |
180 |
15 |
215 |
4 |
70 |
13.5 |
35 |
7 |
56 |
38 |
10 |
M16 |
|
TXFF67 |
250 |
1 |
180 |
15 |
215 |
4 |
80 |
13.5 |
40 |
5 |
70 |
43 |
12 |
M16 |
|
TXFF77 |
300 |
1 |
230 |
16 |
265 |
4 |
100 |
13.5 |
50 |
10 |
80 |
53.5 |
14 |
M16 |
|
TXFF87 |
350 |
1 |
250 |
18 |
300 |
5 |
120 |
17.5 |
60 |
5 |
110 |
64 |
18 |
M20 |
|
TXFF97 |
450 |
2 |
350 |
22 |
400 |
5 |
140 |
17.5 |
70 |
7.5 |
125 |
74.5 |
20 |
M20 |
|
TXFF107 |
450 |
2 |
350 |
22 |
400 |
5 |
170 |
17.5 |
90 |
5 |
160 |
95 |
25 |
M24 |
|
TXFF127 |
550 |
2 |
450 |
25 |
500 |
5 |
210 |
17.5 |
110 |
15 |
180 |
116 |
28 |
M24 |
