型号 |

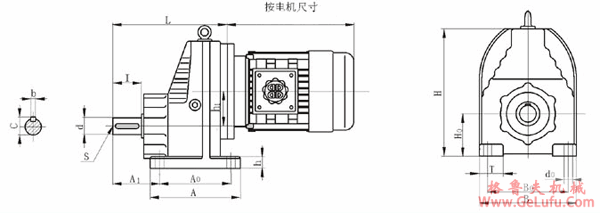

安装尺寸 轴伸尺寸 外形尺寸 | ||||||||||||||||
|
Ho |
Ao |
Bo |
A1 |
do |
d(k6) |
b |
c |
I |
S |
L |
A |
B |
H |
T |
h |
h1 | |
|
DR31 |
53 |
110 |
125 |
52 |
9 |
20 |
6 |
22.5 |
40 |
M6 |
160 |
137 |
156 |
169 |
31 |
12 |
45 |
|
DR41 |
63 |
110 |
125 |
58.5 |
11 |
25 |
8 |
28 |
50 |
M8 |
183 |
137 |
156 |
202 |
31 |
18 |
52 |
|
DR61 |
80 |
120 |
135 |
75 |
13.5 |
25 |
8 |
28 |
50 |
M8 |
201 |
150 |
170 |
224 |
35 |
20 |
58 |
|
DR71 |
90 |
150 |
170 |
105 |
17.5 |
40 |
12 |
43 |
80 |
M12 |
247 |
190 |
204 |
267 |
50 |
25 |
73 |
|
DR87 |
100 |
160 |
215 |
120 |
17.5 |
45 |
14 |
48.5 |
90 |
M16 |
279 |
206 |
260 |
330 |
60 |
30 |
93 |
|
DR91 |
120 |
185 |
250 |
133 |
22 |
50 |
14 |
53.5 |
100 |
M16 |
311 |
240 |
320 |
391 |
70 |
35 |
115 |
|
DR101 |
140 |
210 |
310 |
150 |
22 |
60 |
18 |
64 |
120 |
M20 |
360 |
260 |
360 |
459 |
80 |
45 |
130 |
