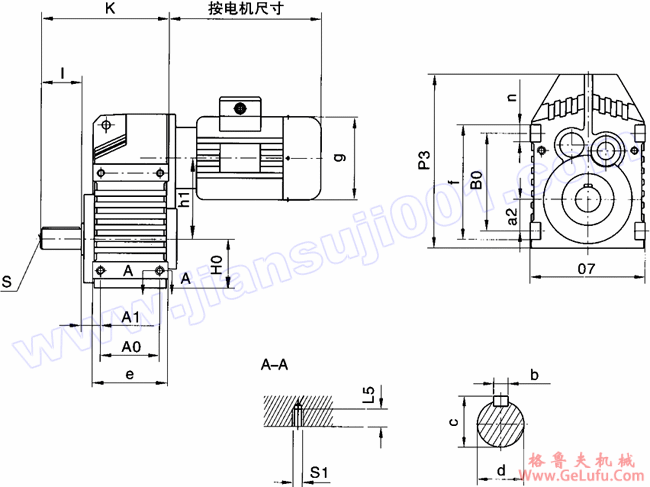

型号 |
安装尺寸 |
轴伸尺寸 |
外形尺寸 | |||||||||||
|
A0 |
a2
B0 |
e |
S |
A1 |
L5 |
S1
H0 |
l |
d |
c
d |
f |
h1
n |
07
P3 |
K | |
|
WF37 |
77 |
31
115 |
100 |
M10 |
22.5 |
11 |
M8
74 |
50 |
25k6 |
28
8 |
135 |
112
20 |
169
250 |
166 |
|
WF47 |
93 |
43
145 |
116 |
M10 |
34 |
15 |
M10
83 |
60 |
30k6 |
33
8 |
165 |
125.1
20 |
186
272 |
199 |
|
WF57 |
102 |
55
170 |
126 |
M12 |
33.5 |
17 |
M12
100 |
70 |
35k6 |
38
10 |
195 |
136
25 |
200
317 |
220 |
|
WF67 |
112 |
60
190 |
131 |
M16 |
38 |
17 |
M12
97 |
80 |
40k6 |
43
12 |
215 |
163.7
25 |
218
343 |
242 |
|
WF77 |
140 |
70
240 |
172 |
M16 |
37 |
26 |
M16
118.7 |
100 |
50k6 |
53.5
14 |
275 |
206.3
35 |
279
426 |
293 |
|
WF87 |
165 |
100
310 |
195 |
M20 |
43 |
26 |
M16
152 |
120 |
60m6 |
64
18 |
350 |
246.7
40 |
331
531 |
344 |
|
WF97 |
205 |
120
350 |
240 |
M20 |
49.5 |
28 |
M20
178 |
140 |
70m6 |
74.5
20 |
400 |
285
50 |
400
623 |
412 |
|
WF107 |
220 |
125
400 |
260 |
M24 |
84 |
36 |
M24
200 |
170 |
90m6 |
95
25 |
460 |
332.4
60 |
450
717 |
491 |
|
WF127 |
270 |
142
450 |
316 |
M24 |
86 |
45 |
M30
236 |
210 |
110m6 |
116
28 |
520 |
382.6
70 |
530
856 |
586 |
|
WF157 |
310 |
170
540 |
364 |
M24 |
121 |
55 |
M36
286 |
210 |
120m6 |
127
32 |
620 |
447
80 |
660
1021 |
665 |
