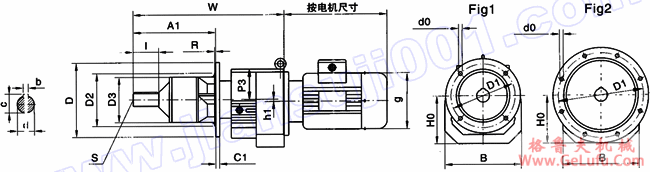

型号 |
安装尺寸 |
轴伸尺寸 |
外形尺寸 | ||||||||||||||||
|
D |
D2 |
D3 |
Fig |
D1 |
C1 |
A1 |
R |
d0 |
d |
l |
c |
b |
s |
W |
H0 |
B |
P3 |
h1 | |
|
WRM57 |
250 |
180j6 |
135 |
1 |
215 |
15 |
230 |
4 |
13.5 |
35k6 |
70 |
38 |
10 |
M12 |
422.5 |
121 |
210 |
72 |
9.7 |
|
WRM67 |
300 |
230j6 |
144 |
1 |
265 |
16 |
240 |
4 |
13.5 |
40k6 |
80 |
43 |
12 |
M16 |
459 |
134 |
215 |
82 |
16.8 |
|
WRM77 |
350 |
250h6 |
170 |
1 |
300 |
18 |
300 |
5 |
17.5 |
50k6 |
100 |
53.5 |
14 |
M16 |
527 |
144 |
244 |
88 |
12.5 |
|
WRM87 |
350 |
250h6 |
186 |
1 |
300 |
18 |
360 |
5 |
17.5 |
60m6 |
120 |
64 |
18 |
M20 |
639 |
184 |
300 |
115 |
10.8 |
|
WRM97 |
450 |
350h6 |
214 |
2 |
400 |
22 |
420 |
5 |
17.5 |
70m6 |
140 |
74.5 |
20 |
M20 |
745 |
230 |
358 |
144 |
10.3 |
|
WRM107 |
550 |
450h6 |
232 |
2 |
500 |
25 |
500 |
5 |
17.5 |
80m6 |
170 |
85 |
22 |
M20 |
871 |
255 |
410 |
158 |
19.1 |
|
WRM137 |
550 |
450h6 |
253 |
2 |
500 |
25 |
600 |
5 |
17.5 |
100m6 |
210 |
106 |
28 |
M24 |
1024 |
320 |
463 |
180 |
20.1 |
|
WRM147 |
660 |
550h6 |
274 |
2 |
600 |
28 |
660 |
6 |
22 |
110m6 |
210 |
116 |
28 |
M24 |
1154 |
358 |
540 |
197 |
17 |
|
WRM167 |
660 |
550h6 |
290 |
2 |
600 |
28 |
730 |
6 |
22 |
125m6 |
210 |
134 |
32 |
M24 |
1313 |
430 |
670 |
250 |
48 |
