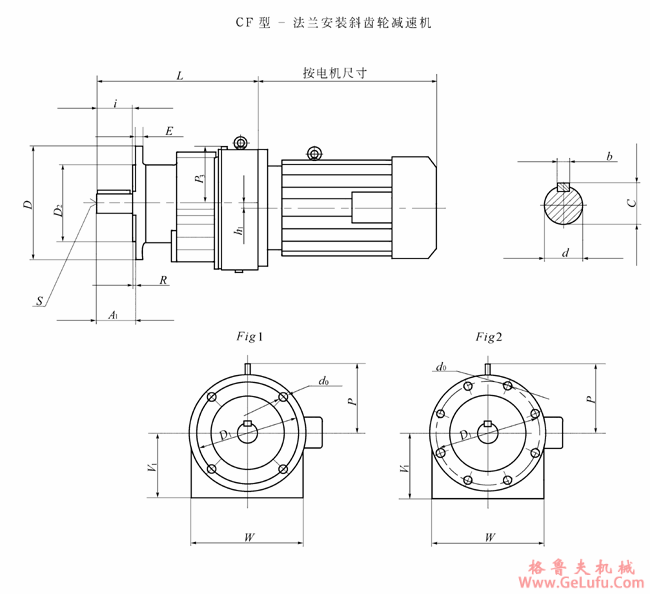

CF法兰安装斜齿轮减速机安装尺寸 WX:grove_company
格鲁夫丝杆升降机
|
机型号 |
安装尺寸 |
轴伸尺寸 |
外型尺寸 | ||||||||||||||||
|
D |
Fig |
D1 |
D2 |
A1 |
R |
d0 |
d |
i |
c |
b |
s |
v1 |
w |
p30L |
P |
L |
E |
h1 | |
|
CF17 |
120 |
1 |
100 |
80j6 |
40 |
3 |
7 |
20k6 |
40 |
22.5 |
6 |
M6 |
76 |
130 |
59 |
215 |
- |
8 |
- |
|
CF27 |
120 |
1 |
100 |
80j6 |
50 |
3 |
7 |
25k6 |
50 |
28 |
8 |
M10 |
92 |
142 |
57 |
212 |
- |
8 |
3.4 |
|
CF37 |
120 |
1 |
100 |
80j6 |
50 |
3 |
7 |
25k6 |
50 |
28 |
8 |
M10 |
94 |
161 |
61 |
232 |
- |
8 |
10.1 |
|
CF47 |
140 |
1 |
115 |
95j6 |
60 |
3 |
9 |
30k6 |
60 |
33 |
8 |
M10 |
118 |
178 |
72 |
250 |
- |
10 |
14 |
|
CF57 |
160 |
1 |
130 |
110j6 |
70 |
3.5 |
9 |
35k6 |
70 |
38 |
10 |
M12 |
121 |
202 |
72 |
270 |
- |
10 |
11.2 |
|
CF67 |
200 |
1 |
165 |
130j6 |
70 |
3.5 |
11 |
35k6 |
70 |
38 |
10 |
M12 |
134 |
215 |
82 |
300 |
113 |
12 |
20.7 |
|
CF77 |
250 |
1 |
215 |
180j6 |
80 |
4 |
14 |
40k6 |
80 |
43 |
12 |
M16 |
144 |
235 |
88 |
320 |
129 |
15 |
15.7 |
|
CF87 |
300 |
1 |
265 |
230j6 |
100 |
4 |
14 |
50k6 |
100 |
53.5 |
14 |
M16 |
184 |
297 |
115 |
390 |
165 |
16 |
12.6 |
|
CF97 |
350 |
1 |
300 |
250h6 |
120 |
5 |
18 |
60m6 |
120 |
64 |
18 |
M20 |
230 |
348 |
144 |
470 |
193 |
18 |
10.2 |
|
CF107 |
350 |
1 |
300 |
250h6 |
140 |
5 |
18 |
70m6 |
140 |
74.5 |
20 |
M20 |
255 |
409 |
158 |
530 |
224 |
20 |
20.4 |
|
CF137 |
450 |
2 |
400 |
350h6 |
170 |
5 |
18 |
90m6 |
170 |
95 |
25 |
M24 |
320 |
458 |
180 |
630 |
247 |
22 |
25.1 |
|
CF147 |
450 |
2 |
400 |
350h6 |
210 |
5 |
18 |
110m6 |
210 |
116 |
28 |
M24 |
361 |
540 |
210 |
750 |
285 |
22 |
33.4 |
