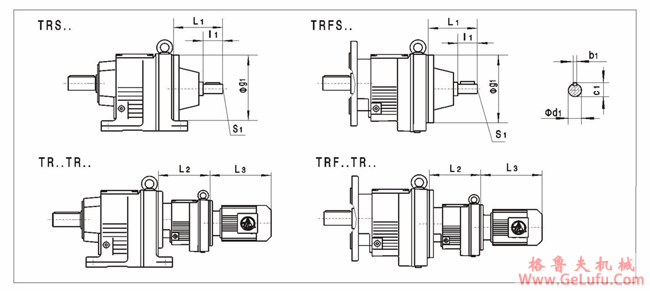

TR系列斜齿轮硬齿面减速机的安装尺寸
格鲁夫丝杆升降机
|
型号 |
d1 |
L1 |
I1 |
S1 |
C1 |
b1 |
g1 |
|
TR..S28
TR..S38 |
16k6 |
115 |
40 |
M5 |
18 |
5 |
120 |
|
TR..S48
TR..S58
TR..S68 |
19k6 |
120 |
40 |
M6 |
21.5 |
6 |
160 |
|
TR..S78 |
24k6 |
140 |
50 |
M8 |
27 |
8 |
200 |
|
TR..S88 |
28k6 |
180 |
60 |
M10 |
31 |
8 |
250 |
|
TR..S98 |
38k6 |
220 |
80 |
M12 |
41 |
10 |
300 |
|
TR..S108 |
42k6 |
270 |
110 |
M16 |
45 |
12 |
350 |
|
TR..S138 |
55m6 |
307 |
110 |
M20 |
59 |
16 |
400 |
|
TR..S148 |
55m6 |
297 |
110 |
M20 |
59 |
16 |
450 |
|
TR..S168 |
70m6 |
374 |
140 |
M20 |
74.5 |
20 |
550 |
|
型号 |
电机机座号 |
L2 |
L3 |
|
型号 |
电机机座号 |
L2 |
L3 |
|
TR..28TR18
TR..38TR18 |
Y263.. |
175 |
≤208 |
TR..148TR88 |
Y290.. |
272 |
≤295 | |
|
Y271.. |
175 |
≤266 |
Y2100L |
272 |
≤320 | |||
|
Y280.. |
175 |
≤272 |
Y2112M |
272 |
≤340 | |||
|
TR..48TR38
TR..58TR38
TR..68TR38
TR..78TR38 |
Y263.. |
157 |
≤208 |
Y2132. |
272 |
≤465 | ||
|
Y271.. |
157 |
≤266 |
Y2160.. |
272 |
≤600 | |||
|
Y2180.. |
272 |
≤665 | ||||||
|
Y280.. |
157 |
≤272 |
TR..168TR98 |
Y280.. |
320 |
≤348 | ||
|
Y290.. |
157 |
≤320 |
Y290.. |
320 |
≤395 | |||
|
TR..88TR58
TR..98TR58 |
Y263.. |
187 |
≤198 |
Y2100L |
320 |
≤320 | ||
|
Y271.. |
187 |
≤266 |
Y2112M |
320 |
≤340 | |||
|
Y280.. |
187 |
≤272 |
Y2132,, |
320 |
≤425 | |||
|
Y290M |
187 |
≤320 |
Y2160.. |
320 |
≤600 | |||
|
Y2100L |
187 |
≤350 |
Y2180.. |
320 |
≤665 | |||
|
Y2112M |
187 |
≤375 |
TR..168TR108 |
Y2100L |
355 |
≤320 | ||
|
TR..108TR78
TR..138TR78
TR..148TR78 |
Y263.. |
220 |
≤198 |
Y2112M |
355 |
≤340 | ||
|
Y271.. |
220 |
≤266 |
Y2132.. |
355 |
≤425 | |||
|
Y280.. |
220 |
≤248 |
Y2160.. |
355 |
≤560 | |||
|
Y290.. |
220 |
≤295 |
Y2180.. |
355 |
≤620 | |||
|
Y2100L |
220 |
≤350 |
Y2200L |
355 |
≤675 | |||
|
Y2112M |
220 |
≤375 |
Y2225.. |
355 |
≤740 | |||
|
Y2132.. |
220 |
≤465 |
|
|
|
| ||
|
Y2160M |
220 |
≤600 |
|
|
|
|
