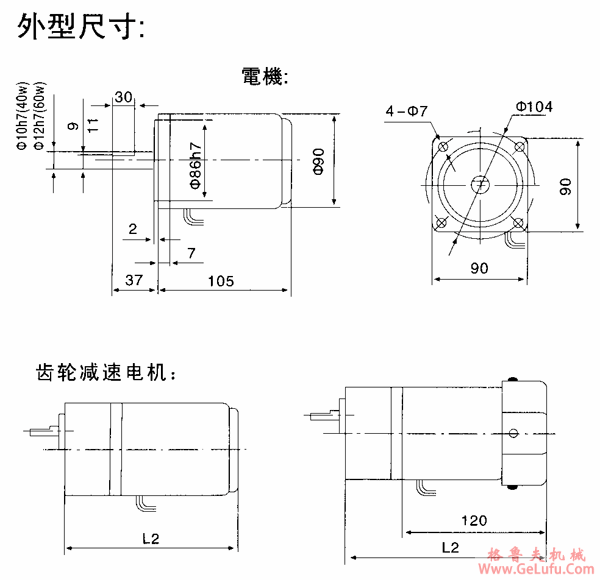

台湾YY、YN系列小型齿轮减速电机外形及安装尺寸（机座号90，40/60W） 手机：13331225020
|
名称 |
极数 |
型号 |
功率
W |
电压
V |
频率
Hz |
电流
A |
启动
转矩 |
额定
转矩 |
额定
转速 |
电容 |
|
可逆电机 |
4 |
YN90-40 |
40 |
220 |
50 |
0.50 |
294 |
294 |
1300 |
3/450 |
|
YN90-40 |
40 |
110 |
50/60 |
1.0 |
294/246 |
294/246 |
1300/1550 |
12/250 | ||
|
YN90-60 |
60 |
220 |
50 |
0.65 |
441 |
441 |
1300 |
4/450 | ||
|
YN90-60 |
60 |
110 |
50/60 |
1.30 |
441/372 |
441/372 |
1300/1550 |
20/250 | ||
|
感应电机 |
4 |
YN90-40 |
40 |
220 |
50 |
0.45 |
215 |
294 |
1300 |
2.5/450 |
|
YN90-40 |
40 |
110 |
50/60 |
0.90 |
215 |
294/246 |
1300/1550 |
10/250 | ||
|
YN90-60 |
60 |
220 |
50 |
0.55 |
343 |
441 |
1300 |
3.5/450 | ||
|
YN90-60 |
60 |
110 |
50/60 |
1.10 |
343 |
441/372 |
1300/1550 |
15/250 | ||
|
三相电机 |
4 |
YN90-40 |
40 |
220 |
50/60 |
0.35 |
392 |
294/246 |
1300/1550 |
/ |
|
YN90-40 |
40 |
380 |
50/60 |
0.20 |
392 |
294/246 |
1300/1550 |
/ | ||
|
YN90-60 |
60 |
220 |
50/60 |
0.50 |
637 |
441/372 |
1300/1550 |
/ | ||
|
YN90-60 |
60 |
380 |
50/60 |
0.30 |
637 |
441/372 |
1300/1550 |
/ |
邮箱：china@gelufu.com
Tel:0312-6784766
|

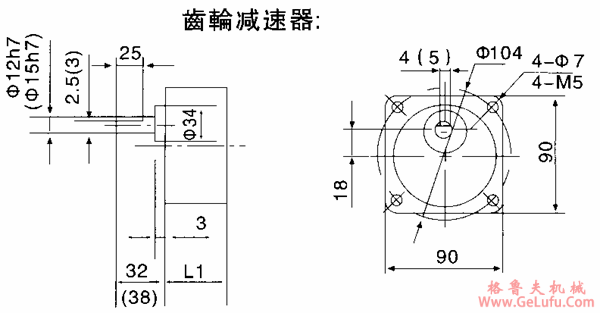

型号 |
减速比 |
L1 |
L2 |
|
YN（YY）90-40 |
1:3～1:20 |
42 |
147 |
|
YN（YY）90-60 |
167 | ||
|
YN（YY）90-40 |
1:25～1:180 |
61 |
166 |
|
YN（YY）90-60 |
186 | ||
|
Y90-40 380/220V |
1:3～1:20 |
42 |
147 |
|
Y90-60 380/220V |
167 | ||
|
Y90-40 380/220V |
1:25～1:180 |
61 |
166 |
|
Y90-60 380/220V |
186 |
gelufu.com.cn
fax:0312-6784733
|
同步转速:r/min |
500 |
400 |
300 |
250 |
200 |
150 |
120 |
100 |
80 |
75 |
60 |
50 |
40 |
35 |
30 |
25 |
20 |
16 |
15 |
12 |
10 |
8 | ||
|
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
40 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 | ||
|
允许负载 |
40W |
N．m |
0.72 |
0.85 |
1.18 |
1.40 |
1.76 |
2.35 |
2.90 |
3.50 |
3.85 |
4.20 |
5.40 |
6.40 |
7.50 |
8.50 |
9.80 |
9.80 |
9.80 |
9.80 |
9.80 |
9.80 |
9.80 |
9.80 |
|
60W |
N．m |
1.08 |
1.20 |
1.78 |
1.96 |
2.60 |
3.50 |
4.40 |
4.90 |
6.40 |
7.0 |
8.0 |
9.60 |
11.5 |
12.7 |
14.7 |
14.7 |
14.7 |
14.7 |
14.7 |
14.7 |
14.7 |
14.7 | |
