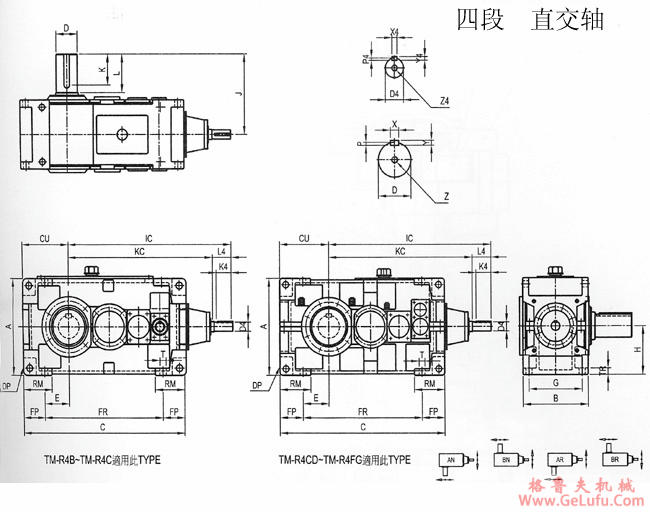

TM系列齿轮减速机四段直交轴外形及安装尺寸 格鲁夫配件
fax:0312-6784733
|
型号 |
A |
B |
C |
CU |
IC |
KC |
E |
FP |
FR |
G |
H |
J |
RM |
T |
TR |
DP |
|
TM-R4B |
400 |
315 |
759 |
235 |
770 |
690 |
120 |
115 |
529 |
255 |
200 |
349 |
150 |
28 |
30 |
3/4" |
|
TM-R4C |
420 |
345 |
848 |
255 |
859 |
779 |
138.5 |
116.5 |
615 |
285 |
210 |
411 |
150 |
28 |
32 |
1" |
|
TM-R4CD |
490 |
345 |
918 |
286 |
898 |
819 |
171 |
115 |
688 |
285 |
245 |
411 |
150 |
28 |
32 |
1" |
|
TM-R4D |
530 |
380 |
970 |
291 |
950 |
870 |
151 |
135 |
700 |
310 |
265 |
440 |
180 |
35 |
35 |
1" |
|
TM-R4E |
600 |
430 |
1115 |
328 |
1080 |
1000 |
163 |
160 |
795 |
350 |
300 |
509 |
215 |
42 |
40 |
1" |
|
TM-R4EF |
670 |
430 |
1215 |
375 |
1133 |
1053 |
210 |
160 |
895 |
350 |
335 |
562 |
220 |
42 |
52 |
1" |
|
TM-R4F |
670 |
460 |
1275 |
370 |
1250 |
1140 |
206 |
160 |
955 |
380 |
335 |
582 |
220 |
42 |
52 |
1" |
|
TM-R4FG |
750 |
460 |
1375 |
414 |
1306 |
1196 |
249 |
160 |
1055 |
380 |
375 |
585 |
220 |
42 |
52 |
1" |
|
型号 |
D |
L |
K |
X |
Y |
P |
Z |
D4 |
L4 |
K4 |
X4 |
Y4 |
P4 |
Z4 |
重量KG |
油量L |
|
TM-R4B |
95m6 |
170 |
150 |
25 |
14 |
9 |
M16 |
28k6 |
80 |
70 |
8 |
7 |
4 |
M8 |
330 |
21 |
|
TM-R4C |
110m6 |
210 |
190 |
28 |
16 |
10 |
M16 |
28k6 |
80 |
70 |
8 |
7 |
4 |
M8 |
475 |
26 |
|
TM-R4CD |
120m6 |
210 |
185 |
32 |
18 |
11 |
M16 |
28k6 |
80 |
70 |
8 |
7 |
4 |
M8 |
535 |
31 |
|
TM-R4D |
125m6 |
210 |
185 |
32 |
18 |
11 |
M16 |
30k6 |
80 |
70 |
8 |
7 |
4 |
M10 |
690 |
41 |
|
TM-R4E |
145m6 |
250 |
225 |
36 |
20 |
12 |
M20 |
35k6 |
80 |
70 |
10 |
8 |
5 |
M10 |
980 |
60 |
|
TM-R4EF |
160m6 |
300 |
275 |
40 |
22 |
13 |
M20 |
35k6 |
80 |
70 |
10 |
8 |
5 |
M10 |
1200 |
70 |
|
TM-R4F |
165m6 |
300 |
275 |
40 |
22 |
13 |
M20 |
45k6 |
110 |
95 |
14 |
9 |
5.5 |
M10 |
1410 |
76 |
|
TM-R4FG |
175m6 |
300 |
270 |
45 |
25 |
15 |
M20 |
45k6 |
110 |
95 |
14 |
9 |
5.5 |
M10 |
1675 |
93 |
