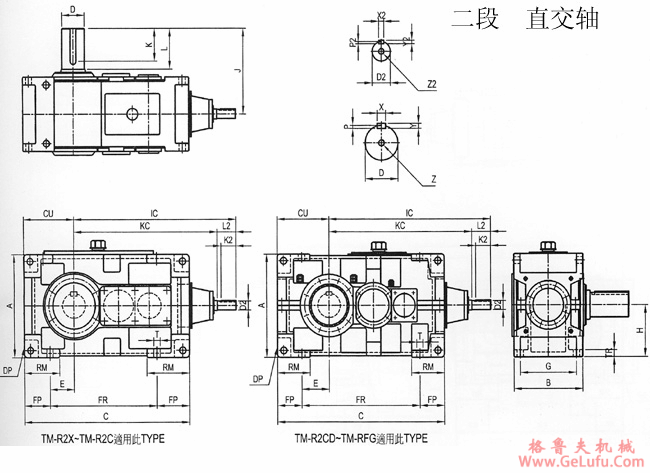

TM系列齿轮减速机二段直交轴外形及安装尺寸 Tel:0312-6784766
QQ：20275456
|
型号 |
A |
B |
C |
CU |
IC |
KC |
E |
FP |
FR |
G |
H |
J |
RM |
T |
TR |
DP |
|
TM-R2X |
270 |
205 |
440 |
160 |
507 |
427 |
90 |
70 |
300 |
135 |
170 |
245 |
95 |
15 |
22 |
3/4" |
|
TM-R2Y |
310 |
235 |
505 |
175 |
545 |
465 |
95 |
80 |
345 |
155 |
190 |
285 |
110 |
19 |
25 |
3/4" |
|
TM-R2A |
320 |
265 |
590 |
200 |
645 |
535 |
110 |
90 |
410 |
215 |
160 |
330 |
120 |
24 |
28 |
3/4" |
|
TM-R2AB |
370 |
265 |
640 |
219 |
676 |
566 |
129 |
90 |
460 |
215 |
185 |
330 |
120 |
24 |
28 |
3/4" |
|
TM-R2B |
400 |
315 |
685 |
235 |
705 |
595 |
120 |
115 |
455 |
255 |
200 |
349 |
150 |
28 |
30 |
3/4" |
|
TM-R2C |
420 |
345 |
775 |
255 |
755 |
645 |
138.5 |
116.5 |
542 |
285 |
210 |
411 |
150 |
28 |
32 |
1" |
|
TM-R2CD |
490 |
345 |
845 |
286 |
794 |
684 |
171 |
115 |
615 |
285 |
245 |
411 |
150 |
28 |
32 |
1" |
|
TM-R2D |
530 |
380 |
885 |
291 |
865 |
725 |
151 |
135 |
615 |
310 |
265 |
440 |
180 |
35 |
35 |
1" |
|
TM-R2E |
600 |
430 |
1020 |
328 |
965 |
825 |
163 |
160 |
700 |
350 |
300 |
509 |
215 |
42 |
40 |
1" |
|
TM-R2EF |
670 |
430 |
1120 |
375 |
1018 |
878 |
210 |
160 |
800 |
350 |
335 |
562 |
220 |
42 |
52 |
1" |
|
TM-R2F |
670 |
460 |
1155 |
370 |
1080 |
940 |
205 |
160 |
835 |
380 |
335 |
582 |
220 |
42 |
52 |
1" |
|
TM-R2FG |
750 |
460 |
1255 |
414 |
1136 |
996 |
249 |
160 |
935 |
380 |
375 |
585 |
220 |
42 |
52 |
1" |
|
型号 |
D |
L |
K |
X |
Y |
P |
Z |
D2 |
L2 |
K2 |
X2 |
Y2 |
P2 |
Z2 |
重量KG |
油量L |
|
TM-R2X |
58m6 |
110 |
95 |
18 |
11 |
7 |
M10 |
28k6 |
80 |
70 |
8 |
7 |
4 |
M8 |
100 |
7 |
|
TM-R2Y |
70m6 |
140 |
125 |
20 |
12 |
7.5 |
M12 |
35k6 |
80 |
70 |
10 |
8 |
5 |
M10 |
150 |
9 |
|
TM-R2A |
80m6 |
170 |
150 |
22 |
14 |
9 |
M16 |
40k6 |
110 |
95 |
12 |
8 |
5 |
M10 |
215 |
9 |
|
TM-R2AB |
90m6 |
170 |
150 |
25 |
14 |
9 |
M16 |
40k6 |
110 |
95 |
12 |
8 |
5 |
M10 |
240 |
12 |
|
TM-R2B |
95m6 |
170 |
150 |
25 |
14 |
9 |
M16 |
45k6 |
110 |
95 |
14 |
9 |
5.5 |
M10 |
315 |
21 |
|
TM-R2C |
110m6 |
210 |
190 |
28 |
16 |
10 |
M16 |
50k6 |
110 |
95 |
16 |
10 |
6 |
M10 |
450 |
23 |
|
TM-R2CD |
120m6 |
210 |
185 |
32 |
18 |
11 |
M16 |
50k6 |
110 |
95 |
16 |
10 |
6 |
M10 |
510 |
28 |
|
TM-R2D |
125m6 |
210 |
185 |
32 |
18 |
11 |
M16 |
60m6 |
140 |
125 |
18 |
11 |
7 |
M12 |
620 |
29 |
|
TM-R2E |
145m6 |
250 |
225 |
36 |
20 |
12 |
M20 |
65m6 |
140 |
125 |
18 |
11 |
7 |
M12 |
935 |
40 |
|
TM-R2EF |
160m6 |
300 |
275 |
40 |
22 |
13 |
M20 |
65m6 |
140 |
125 |
18 |
11 |
7 |
M12 |
1190 |
50 |
|
TM-R2F |
165m6 |
300 |
275 |
40 |
22 |
13 |
M20 |
75m6 |
140 |
150 |
20 |
12 |
7.5 |
M12 |
1325 |
51 |
|
TM-R2FG |
175m6 |
300 |
270 |
45 |
25 |
15 |
M20 |
75m6 |
140 |
150 |
20 |
12 |
7.5 |
M12 |
1580 |
62 |
