TZ型三级立式齿轮减速器外形安装尺寸 格鲁夫机械

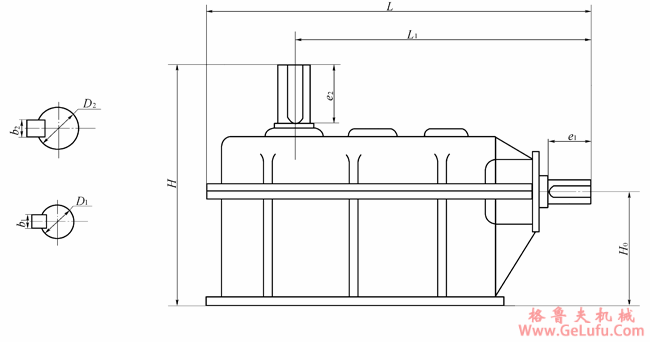

1、外型尺寸 fax:0312-6784733
gelufu.com.cn
TZ系列减速器外型安装尺寸 Mobile:13331225020
|
型号 |
参数 | |||||||||
|
L |
H |
H0 |
L1 |
D1 |
D2 |
b1 |
B2 |
e1 |
e2 | |
|
TZ13 |
1129 |
671 |
290 |
854 |
42 |
85 |
14 |
25 |
90 |
170 |
|
TZ40
TZ55 |
1271 |
75 |
330 |
981 |
45 |
95 |
14 |
25 |
90 |
190 |
|
TZ55 |
1645 |
805 |
345 |
1255 |
60 |
120 |
18 |
32 |
130 |
200 |
|
TZ75 |
1645 |
892 |
345 |
1255 |
60 |
160 |
18 |
40 |
130 |
250 |

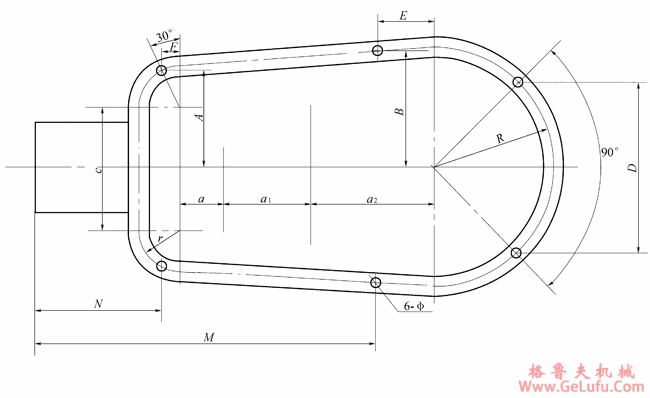

地脚尺寸 WX:grove_company
格鲁夫
|
型号 |
参数 | |||||||||||||
|
a |
a1 |
a2 |
A |
B |
C |
D |
E |
F |
M |
N |
R |
R |
6-φ | |
|
TZ13 |
95 |
187 |
245 |
176.76 |
233.62 |
163 |
360.62 |
190 |
55 |
542 |
150 |
255 |
110 |
6-φ18 |
|
TZ22 |
85 |
220 |
276 |
206.92 |
255.693 |
206 |
381.34 |
186 |
60 |
650 |
195 |
270 |
120 |
6-φ18 |
|

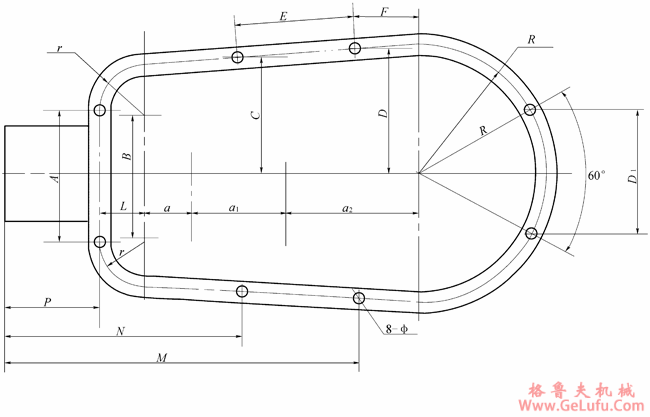

型号 |
参数 | |||||||||||||||
|
a |
a1 |
a2 |
A |
B |
C |
D |
R=D1 |
E |
F |
r |
L |
P |
M |
N |
8-φ | |
|
TZ40
TZ55 |
70 |
285 |
390 |
268 |
256 |
304.9 |
348.267 |
360 |
390 |
125 |
150 |
149.88 |
170 |
940 |
552.4 |
8-φ27 |
|
TZ75 |
70 |
285 |
390 |
268 |
256 |
304.9 |
348.267 |
360 |
390 |
125 |
150 |
149.88 |
170 |
940 |
552.4 |
8-φ27 |
