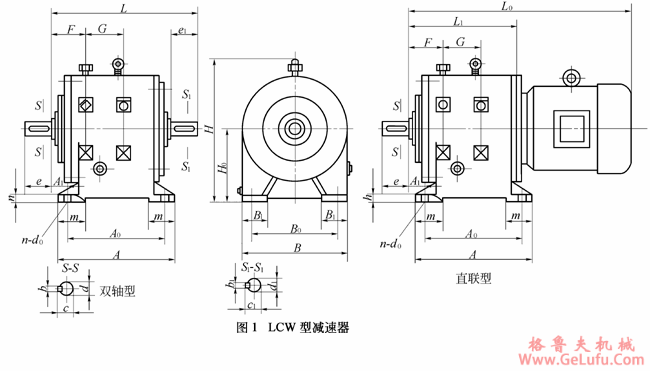

LCW型卧式二级硬齿面齿轮减速机外形尺寸 gelufu
WX:grove_company
|
型号 |
中心距 |
轴径d |
输出轴许用
转矩/N・m |
中心高
H0 |
轴承间距 |
外形尺寸 |
减速器质量m/kg | |||||
|
G |
F |
H |
L1 |
L |
L0 |
双轴型 |
直联型 | |||||
|
LCW75 |
75 |
30k6 |
89.5 |
140 |
108 |
77.5 |
288 |
265 |
322 |
510~550 |
70 |
59 |
|
LCW100 |
100 |
40k6 |
328 |
210 |
150 |
73.5 |
428 |
335 |
427 |
595~730 |
105 |
92 |
|
LCW125 |
125 |
55k6 |
810 |
250 |
167 |
96.5 |
502 |
402 |
462 |
742~962 |
208 |
184 |
|
LCW150 |
150 |
65m6 |
2289 |
300 |
178 |
102 |
600 |
463 |
570 |
953~1143 |
290 |
245 |
|
LCW200 |
200 |
80m6 |
3283 |
400 |
215 |
100.5 |
742 |
540 |
675 |
― |
440 |
― |
|
LCW250 |
250 |
100m6 |
5880 |
490 |
262 |
105.5 |
950 |
600 |
770 |
― |
650 |
― |
|
LCW325 |
325 |
130m6 |
15000 |
630 |
352 |
134 |
1110 |
805 |
1038 |
― |
980 |
― |
|
型号 |
安装尺寸 | |||||||||||||||
|
A |
A0 |
A1 |
B |
B0 |
B1 |
m |
n-d0 |
h |
e |
b |
c |
d1 |
e1 |
b1 |
c1 | |
|
LCW75 |
245 |
205 |
40 |
230 |
170 |
60 |
70 |
4-14 |
30 |
55 |
8 |
33 |
20 |
35 |
6 |
22.5 |
|
LCW100 |
365 |
310 |
55 |
325 |
250 |
75 |
85 |
4-22 |
30 |
75 |
12 |
43 |
25 |
55 |
8 |
28 |
|
LCW125 |
435 |
370 |
72 |
380 |
290 |
90 |
115 |
4-26 |
45 |
95 |
16 |
59 |
35 |
60 |
10 |
38 |
|
LCW150 |
480 |
410 |
80 |
460 |
340 |
120 |
120 |
4-33 |
45 |
115 |
18 |
69 |
40 |
65 |
12 |
43 |
|
LCW200 |
600 |
500 |
80 |
600 |
480 |
120 |
130 |
4-33 |
45 |
150 |
22 |
85 |
55 |
90 |
16 |
59 |
|
LCW250 |
670 |
550 |
85 |
720 |
580 |
140 |
150 |
4-40 |
50 |
170 |
28 |
106 |
70 |
125 |
20 |
74.5 |
|
LCW325 |
770 |
700 |
125 |
1070 |
1000 |
100 |
770 |
6-26 |
45 |
210 |
32 |
137 |
90 |
170 |
25 |
95 |
