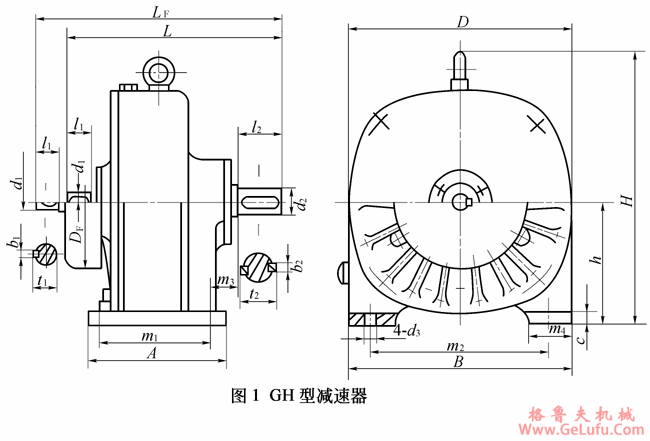

GH型滚柱活齿减速机型式及主要尺寸JB/T6137-1992 格鲁夫丝杆升降机
电话：0312-6784766
gelufu.com
|
规格 |
A |
B |
L |
H |
D |
LF |
DF |
h |
d1 |
l1 |
b1 |
t1 |
|
100 |
170 |
172 |
261 |
188 |
168 |
― |
― |
90 |
16j6 |
28 |
5 |
18 |
|
120 |
180 |
195 |
286 |
221 |
190 |
― |
― |
112 |
18jk6 |
28 |
6 |
20.5 |
|
150 |
215 |
240 |
350 |
290 |
236 |
410 |
175 |
140 |
20j6 |
36 |
6 |
22.5 |
|
180 |
230 |
300 |
354 |
346 |
290 |
391 |
175 |
160 |
24j6 |
35 |
8 |
27 |
|
220 |
287 |
325 |
414 |
391 |
320 |
474 |
205 |
180 |
28j6 |
42 |
8 |
31 |
|
270 |
310 |
400 |
480 |
440 |
380 |
530 |
240 |
225 |
32k6 |
58 |
10 |
35 |
|
规格 |
d2 |
l2 |
b2 |
t2 |
m1 |
m2 |
m3 |
m4 |
c |
d3 |
质量m/kg |
|
100 |
25j6 |
42 |
8 |
28 |
140 |
141 |
46 |
30 |
12 |
9 |
14 |
|
120 |
30k6 |
58 |
8 |
33 |
150 |
150 |
40 |
45 |
16 |
11 |
25 |
|
150 |
38k6 |
58 |
10 |
43 |
175 |
190 |
78 |
50 |
20 |
13.5 |
50 |
|
180 |
45k6 |
82 |
14 |
48.5 |
185 |
240 |
45 |
60 |
22 |
17.5 |
76 |
|
220 |
50k6 |
82 |
14 |
53.5 |
227 |
245 |
60 |
80 |
25 |
17.5 |
100 |
|
270 |
65m6 |
105 |
18 |
69 |
260 |
310 |
76 |
100 |
30 |
22 |
135 |
