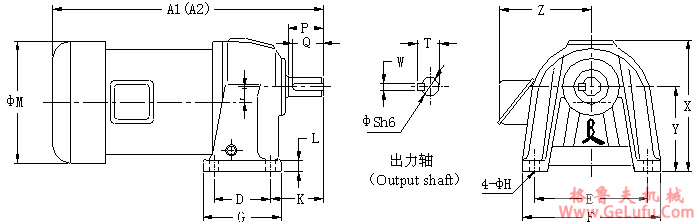

CH型卧式单相--三相齿轮减速马达的外型尺寸图 格鲁夫
mail:china@gelufu.com
|
马力 (HP) |
减速比 |
机型 |
A1 |
A2 |
D |
E |
F |
G |
H |
L |
J |
K |
M |
X |
Y |
Z |
出力轴 | ||||
|
P |
Q |
S |
T |
W | |||||||||||||||||
|
200W www.gelufu.com.cn (1/4HP) |
1/25-1/120 |
22CH |
320 |
320 |
65 |
130 |
158 |
90 |
11 |
13 |
17.5 |
60 |
125 |
160 |
97.5 |
115 |
40 |
35 |
22 |
25 |
8 |
|
400W 格鲁夫减速机 (1/2HP) |
1/5-1/20 |
22CH |
330 |
360 |
65 |
130 |
158 |
90 |
11 |
13 |
17.5 |
60 |
125 |
160 |
97.5 |
125 |
40 |
35 |
22 |
25 |
8 |
|
1/25-1/90 |
28CH |
360 |
390 |
90 |
140 |
180 |
120 |
11 |
17 |
23 |
68 |
165 |
180 |
116 |
125 |
45 |
40 |
28 |
31 |
8 | |
|
750W 传真：0312-6784733 (1HP) |
1/3-1/25 |
28CH |
380 |
410 |
90 |
140 |
180 |
120 |
11 |
17 |
23 |
68 |
165 |
180 |
116 |
125 |
45 |
40 |
28 |
31 |
8 |
|
1/30-1/120 |
32CH |
410 |
440 |
130 |
170 |
210 |
160 |
13 |
20 |
30 |
73 |
165 |
210 |
138.5 |
125 |
55 |
50 |
32 |
35 |
10 | |
|
1500W fax:0312-6784733 (2HP) |
1/3-1/30 |
32CH |
460 |
510 |
130 |
170 |
210 |
160 |
13 |
20 |
30 |
73 |
195 |
210 |
138.5 |
145 |
55 |
50 |
32 |
35 |
10 |
|
1/40-1/100 |
40CH |
510 |
560 |
150 |
210 |
260 |
200 |
15 |
23 |
36 |
85 |
195 |
250 |
160 |
145 |
65 |
60 |
40 |
43 |
12 | |
|
2200W QQ：47447450 (3HP) |
1/3-1/40 |
40CH |
530 |
|
150 |
210 |
260 |
200 |
15 |
23 |
36 |
85 |
210 |
250 |
160 |
155 |
65 |
60 |
40 |
43 |
12 |
|
1/50-1/100 |
50CH |
580 |
|
170 |
265 |
330 |
230 |
19 |
30 |
51 |
116 |
210 |
306 |
200 |
155 |
80 |
75 |
50 |
53.3 |
14 | |
|
4000W (5HP) |
1/3-1/60 |
50CH |
600 |
|
170 |
265 |
330 |
230 |
19 |
30 |
51 |
116 |
230 |
306 |
200 |
160 |
80 |
75 |
50 |
53.3 |
14 |
|
备注：A1：三相马达尺寸 A1：3-Phase Motor A2：单相马达尺寸 A2：1-Phase Motor | |||||||||||||||||||||
