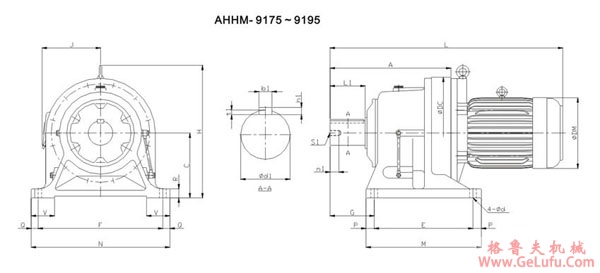

ADC系列摆线减速机尺寸图表AHHM-9175～9195
WX:grove_company
格鲁夫
|
AHHM-9175～9195尺寸图表 | ||||||||||||||||||||
|
AHHM |
A |
C |
DC |
E |
F |
G |
M |
N |
P |
Q |
R |
V |
d |
输出轴尺寸 | ||||||
|
d1 |
L1 |
b1 |
h1 |
t1 |
S1 |
m1 | ||||||||||||||
|
9175 |
352 |
200 |
362 |
275 |
380 |
125 |
337 |
432 |
31 |
26 |
30 |
80 |
22 |
70 |
90 |
20 |
12 |
7.5 |
M12 |
24 |
|
9185 |
389 |
220 |
390 |
320 |
420 |
145 |
382 |
472 |
31 |
26 |
30 |
85 |
22 |
80 |
110 |
22 |
14 |
9 |
M12 |
24 |
|
9195 |
465 |
250 |
451 |
380 |
480 |
170 |
442 |
532 |
31 |
26 |
35 |
90 |
26 |
95 |
135 |
25 |
14 |
9 |
M20 |
34 |
|
型号 |
电机 |
L |
J |
DM |
H |
W（KG） | ||
|
KW |
HP |
极数 | ||||||
|
AHHM5-9175-Ratio |
3.7 |
5 |
4 |
700 |
184 |
238 |
411 |
173 |
|
AHHM8-9175-Ratio |
5.5 |
7.5 |
4 |
733 |
220 |
273 |
411 |
190 |
|
AHHM10-9175-Ratio |
7.5 |
10 |
4 |
770 |
220 |
273 |
411 |
200 |
|
AHHM15-9175-Ratio |
11 |
15 |
4 |
845 |
256 |
334 |
411 |
220 |
|
AHHM20-9175-Ratio |
15 |
20 |
4 |
888 |
256 |
334 |
411 |
235 |
|
AHHM25-9175-Ratio |
18.5 |
25 |
4 |
913 |
306 |
382 |
430 |
305 |
|
AHHM30-9175-Ratio |
22 |
30 |
4 |
913 |
306 |
382 |
430 |
305 |
|
AHHM5-9185-Ratio |
3.7 |
5 |
4 |
757 |
184 |
238 |
446 |
187 |
|
AHHM8-9185-Ratio |
5.5 |
7.5 |
4 |
777 |
220 |
273 |
446 |
194 |
|
AHHM10-9185-Ratio |
7.5 |
10 |
4 |
817 |
220 |
273 |
446 |
208 |
|
AHHM15-9185-Ratio |
11 |
15 |
4 |
885 |
256 |
334 |
446 |
220 |
|
AHHM20-9185-Ratio |
15 |
20 |
4 |
929 |
256 |
334 |
446 |
280 |
|
AHHM25-9185-Ratio |
18.5 |
25 |
4 |
952 |
306 |
382 |
460 |
343 |
|
AHHM30-9185-Ratio |
22 |
30 |
4 |
952 |
306 |
382 |
460 |
343 |
|
AHHM40-9185-Ratio |
30 |
40 |
4 |
990 |
306 |
382 |
460 |
343 |
|
AHHM8-9195-Ratio |
5.5 |
7.5 |
4 |
857 |
225 |
273 |
511 |
303 |
|
AHHM10-9195-Ratio |
7.5 |
10 |
4 |
890 |
225 |
273 |
511 |
315 |
|
AHHM15-9195-Ratio |
11 |
15 |
4 |
965 |
264 |
334 |
511 |
333 |
|
AHHM20-9195-Ratio |
15 |
20 |
4 |
1008 |
264 |
334 |
511 |
345 |
|
AHHM25-9195-Ratio |
18.5 |
25 |
4 |
1028 |
306 |
382 |
511 |
418 |
|
AHHM30-9195-Ratio |
22 |
30 |
4 |
1028 |
306 |
382 |
511 |
418 |
|
AHHM40-9195-Ratio |
30 |
40 |
4 |
1028 |
306 |
382 |
511 |
434 |
|
AHHM50-9195-Ratio |
37 |
50 |
4 |
1128 |
342 |
422 |
511 |
470 |
