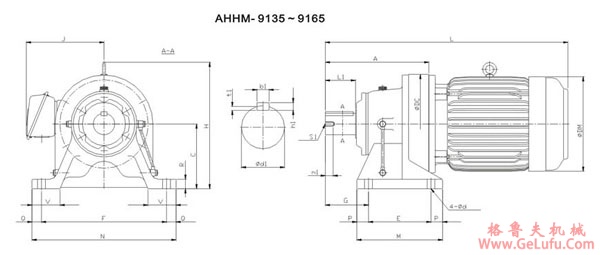

ADC系列摆线减速机尺寸图表AHHM-9135～9165
格鲁夫减速机
Tel:0312-6784766
|
AHHM-9135～9165尺寸图表 | ||||||||||||||||||||
|
AHHM |
A |
C |
DC |
E |
F |
G |
M |
N |
P |
Q |
R |
V |
d |
输出轴尺寸 | ||||||
|
d1 |
L1 |
b1 |
h1 |
t1 |
S1 |
m1 | ||||||||||||||
|
9135 |
240 |
150 |
230 |
145 |
290 |
100 |
199 |
334 |
27 |
22 |
23 |
65 |
18 |
50 |
70 |
14 |
9 |
5.5 |
M10 |
18 |
|
9145 |
260 |
150 |
230 |
145 |
290 |
120 |
199 |
334 |
27 |
22 |
23 |
65 |
18 |
50 |
90 |
14 |
9 |
5.5 |
M10 |
18 |
|
9155 |
260 |
160 |
230 |
145 |
290 |
120 |
199 |
334 |
27 |
22 |
23 |
70 |
18 |
50 |
90 |
14 |
9 |
5.5 |
M10 |
18 |
|
9165 |
308 |
160 |
318 |
150 |
370 |
139 |
242 |
414 |
46 |
22 |
25 |
75 |
18 |
60 |
90 |
18 |
11 |
7 |
M10 |
18 |
|
型号 |
电机 |
L |
J |
DM |
H |
W（KG） | ||
|
KW |
HP |
极数 | ||||||
|
AHHM1-9135-Ratio |
0.75 |
1 |
4 |
485 |
145 |
177 |
300 |
60 |
|
AHHM2-9135-Ratio |
1.5 |
2 |
4 |
525 |
150 |
200 |
300 |
68 |
|
AHHM3-9135-Ratio |
2.2 |
3 |
4 |
552 |
175 |
219 |
300 |
80 |
|
AHHM5-9135-Ratio |
3.7 |
5 |
4 |
572 |
188 |
238 |
303 |
88 |
|
AHHM8-9135-Ratio |
5.5 |
7.5 |
4 |
615 |
220 |
273 |
328 |
105 |
|
AHHM10-9135-Ratio |
7.5 |
10 |
4 |
653 |
225 |
273 |
328 |
116 |
|
AHHM1-9145-Ratio |
0.75 |
1 |
4 |
505 |
145 |
177 |
300 |
60 |
|
AHHM2-9145-Ratio |
1.5 |
2 |
4 |
545 |
152 |
200 |
300 |
68 |
|
AHHM3-9145-Ratio |
2.2 |
3 |
4 |
572 |
175 |
219 |
300 |
80 |
|
AHHM5-9145-Ratio |
3.7 |
5 |
4 |
592 |
188 |
238 |
303 |
90 |
|
AHHM8-9145-Ratio |
5.5 |
7.5 |
4 |
635 |
220 |
273 |
328 |
105 |
|
AHHM10-9145-Ratio |
7.5 |
10 |
4 |
675 |
225 |
273 |
328 |
116 |
|
AHHM1-9155-Ratio |
0.75 |
1 |
4 |
505 |
145 |
177 |
300 |
60 |
|
AHHM2-9155-Ratio |
1.5 |
2 |
4 |
545 |
152 |
200 |
300 |
68 |
|
AHHM3-9155-Ratio |
2.2 |
3 |
4 |
572 |
175 |
219 |
300 |
82 |
|
AHHM5-9155-Ratio |
3.7 |
5 |
4 |
592 |
188 |
238 |
303 |
93 |
|
AHHM8-9155-Ratio |
5.5 |
7.5 |
4 |
635 |
220 |
273 |
328 |
108 |
|
AHHM10-9155-Ratio |
7.5 |
10 |
4 |
675 |
225 |
273 |
328 |
120 |
|
AHHM15-9155-Ratio |
11 |
15 |
4 |
755 |
258 |
334 |
362 |
152 |
|
AHHM2-9165-Ratio |
1.5 |
2 |
4 |
595 |
152 |
200 |
320 |
110 |
|
AHHM3-9165-Ratio |
2.2 |
3 |
4 |
624 |
175 |
219 |
320 |
122 |
|
AHHM5-9165-Ratio |
3.7 |
5 |
4 |
642 |
185 |
238 |
320 |
131 |
|
AHHM8-9165-Ratio |
5.5 |
7.5 |
4 |
677 |
220 |
273 |
338 |
147 |
|
AHHM10-9165-Ratio |
7.5 |
10 |
4 |
715 |
220 |
273 |
338 |
158 |
|
AHHM15-9165-Ratio |
11 |
15 |
4 |
802 |
258 |
334 |
377 |
191 |
|
AHHM20-9165-Ratio |
15 |
20 |
4 |
845 |
258 |
334 |
377 |
208 |
