ADC系列摆线减速机尺寸图表AHHM-9205～9225
格鲁夫齿轮箱
格鲁夫减速机
|

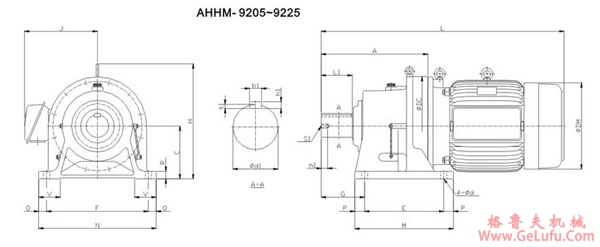

AHHM-9205～9225尺寸图表 | ||||||||||||||||||||
|
AHHM |
A |
C |
DC |
E |
F |
G |
M |
N |
P |
Q |
R |
V |
d |
输出轴尺寸 | ||||||
|
d1 |
L1 |
b1 |
h1 |
t1 |
S1 |
m1 | ||||||||||||||
|
9205 |
502 |
250 |
471 |
360 |
440 |
215 |
442 |
532 |
41 |
46 |
35 |
100 |
26 |
100 |
165 |
28 |
16 |
10 |
M20 |
34 |
|
9215 |
526 |
265 |
507 |
395 |
480 |
210 |
477 |
582 |
41 |
51 |
40 |
110 |
26 |
110 |
165 |
28 |
16 |
10 |
M20 |
34 |
|
9225 |
566 |
280 |
549 |
420 |
540 |
230 |
522 |
622 |
51 |
41 |
40 |
115 |
33 |
120 |
165 |
32 |
18 |
11 |
M20 |
34 |
格鲁夫机械
|
型号 |
电机 |
L |
J |
DM |
H |
W（KG） | ||
|
KW |
HP |
| ||||||
|
AHHM15-9205-Ratio |
11 |
15 |
4 |
1002 |
262 |
334 |
530 |
315 |
|
AHHM20-9205-Ratio |
15 |
20 |
4 |
1047 |
262 |
334 |
530 |
368 |
|
AHHM25-9205-Ratio |
18.5 |
25 |
4 |
1065 |
306 |
382 |
530 |
438 |
|
AHHM30-9205-Ratio |
22 |
30 |
4 |
1065 |
306 |
382 |
530 |
438 |
|
AHHM40-9205-Ratio |
30 |
40 |
4 |
1105 |
306 |
382 |
530 |
452 |
|
AHHM50-9205-Ratio |
37 |
50 |
4 |
1168 |
340 |
420 |
530 |
488 |
|
AHHM60-9205-Ratio |
45 |
60 |
4 |
1168 |
340 |
420 |
530 |
488 |
|
AHHM15-9215-Ratio |
11 |
15 |
4 |
1026 |
262 |
334 |
575 |
400 |
|
AHHM20-9215-Ratio |
15 |
20 |
4 |
1070 |
262 |
334 |
575 |
452 |
|
AHHM25-9215-Ratio |
18.5 |
25 |
4 |
1090 |
306 |
382 |
575 |
515 |
|
AHHM30-9215-Ratio |
22 |
30 |
4 |
1090 |
306 |
382 |
575 |
515 |
|
AHHM40-9215-Ratio |
30 |
40 |
4 |
1128 |
306 |
382 |
575 |
528 |
|
AHHM50-9215-Ratio |
37 |
50 |
4 |
1190 |
340 |
420 |
575 |
560 |
|
AHHM60-9215-Ratio |
45 |
60 |
4 |
1190 |
340 |
420 |
575 |
560 |
|
AHHM75-9215-Ratio |
55 |
75 |
4 |
1228 |
388 |
458 |
575 |
675 |
|
AHHM25-9225-Ratio |
18.5 |
25 |
4 |
1130 |
306 |
382 |
610 |
600 |
|
AHHM30-9225-Ratio |
22 |
30 |
4 |
1130 |
306 |
382 |
610 |
600 |
|
AHHM40-9225-Ratio |
30 |
40 |
4 |
1168 |
306 |
382 |
610 |
615 |
|
AHHM50-9225-Ratio |
37 |
50 |
4 |
1230 |
340 |
420 |
610 |
652 |
|
AHHM60-9225-Ratio |
45 |
60 |
4 |
1230 |
340 |
420 |
610 |
652 |
|
AHHM75-9225-Ratio |
55 |
75 |
4 |
1290 |
388 |
458 |
610 |
750 |
