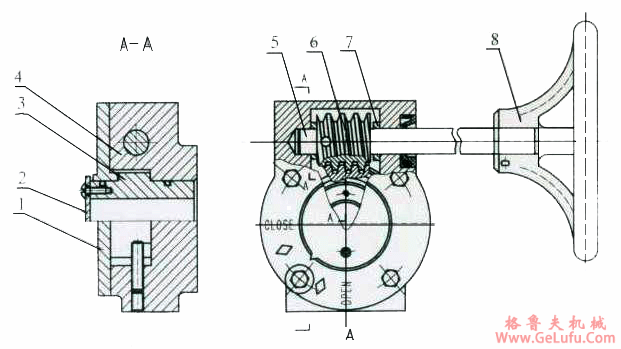

8 |
手轮 |
1 |
HT200GB9439-88 |
WCB GB2229-88 |
|
7 |
挡圈 |
1 |
45GB699-88 |
|
|
6 |
蜗杆 |
1 |
45GB699-88 |
|
|
5 |
蜗杆轴 |
1 |
45GB699-88 |
|
|
4 |
减速器壳 |
1 |
HT200GB9439-88 |
WCB GB12229-88 |
|
3 |
蜗轮 |
1 |
QT500-7GB1348-88 |
|
|
2 |
指示盘 |
1 |
Q235A GB700-88 |
|
|
1 |
减速器盖 |
1 |
HT200GB9439-88 |
WCB GB12229-88 |
|
序号 |
名称 |
数量 |
材料 |
可选材料 |
|

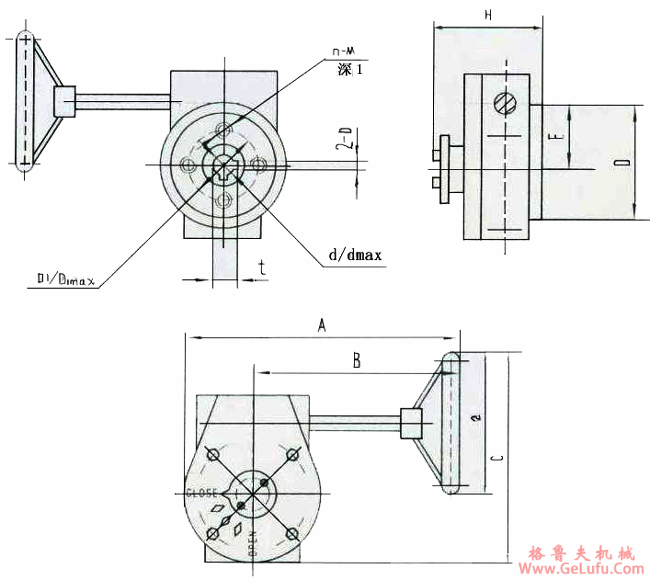

型号 |
适用通径DN |
d |
dmax |
b |
t+0.2 |
D |
D1 |
D1max |
n-M×L |
A |
B |
C |
E |
H |
φ |
输出扭矩NM |
重量kg |
|
XJ24 |
50～80 |
12.7 |
26 |
3 |
14.2 |
77 |
57 |
80 |
4-M6×13 |
201 |
148 |
249 |
45 |
75 |
150 |
170 |
5.2 |
|
100 |
15.9 |
5 |
19.2 |
92 |
70 |
| |||||||||||
|
125～150 |
19.05 |
21.4 |
300 |
270 |
8.8 | ||||||||||||
|
XJ30 |
200 |
22.2 |
30 |
5 |
24.5 |
115 |
89 |
90 |
4-M12×15 |
315 |
238 |
300 |
63 |
85 |
300 |
700 |
12.3 |
|
250 |
28.6 |
45 |
8 |
31.9 | |||||||||||||
|
XJ50 |
300～350 |
31.8 |
45 |
8 |
35 |
140 |
108 |
108 |
4-M12×18 |
310 |
226 |
310 |
78 |
86 |
300 |
1200 |
14.4 |
|
XJ80 |
400 |
33.3 |
54 |
10 |
36.5 |
197 |
158.75 |
170 |
4-M18×26 |
400 |
270 |
400 |
120 |
125 |
300 |
2000 |
32.0 |
|
450 |
38.1 |
41.5 |
410 |
270 |
450 |
400 |
34.3 |
