格鲁夫配件
|

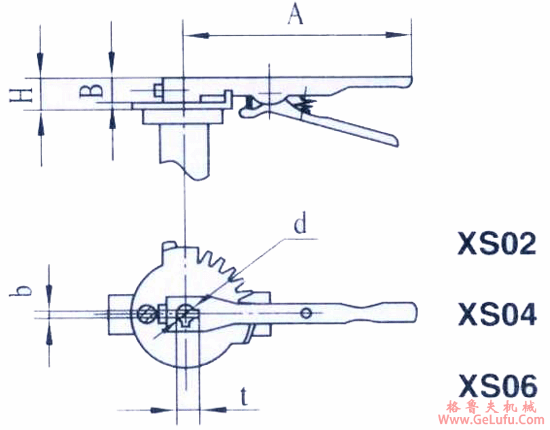

型号 |
适用通径DN |
d |
b |
t |
A |
B |
H |
重量kg |
|
SX02 |
50～80 |
12.70 |
3 |
14.1 |
267 |
27 |
30 |
0.8 |
|
100 |
15.87 |
5 |
18.2 | |||||
|
XS04 |
125～150 |
19.05 |
5 |
21.4 |
310 |
27 |
30 |
1.0 |
|
XS06 |
200 |
22.20 |
5 |
24.5 |
360 |
35 |
38 |
1.2 |
|
7 |
壳体 |
1 |
HT200GB9439-88 |
WCB GB12229-88 |
|
6 |
大盖 |
1 |
HT200GB9439-88 |
WCB GB12229-88 |
|
5 |
蜗轮 |
3 |
QT500-7GB1348-88 |
|
|
4 |
套头 |
3 |
HY200GB9439-88 |
WCB GB12229-88 |
|
3 |
锥齿轮轴 |
1 |
40Cr |
|
|
2 |
蜗杆轴 |
1 |
45GB699-88 |
|
|
1 |
齿轮箱体 |
1 |
GT200GB9439-88 |
WCB GB12229-88 |
|
序号 |
名称 |
数量 |
材料 |
可选材料 |
|

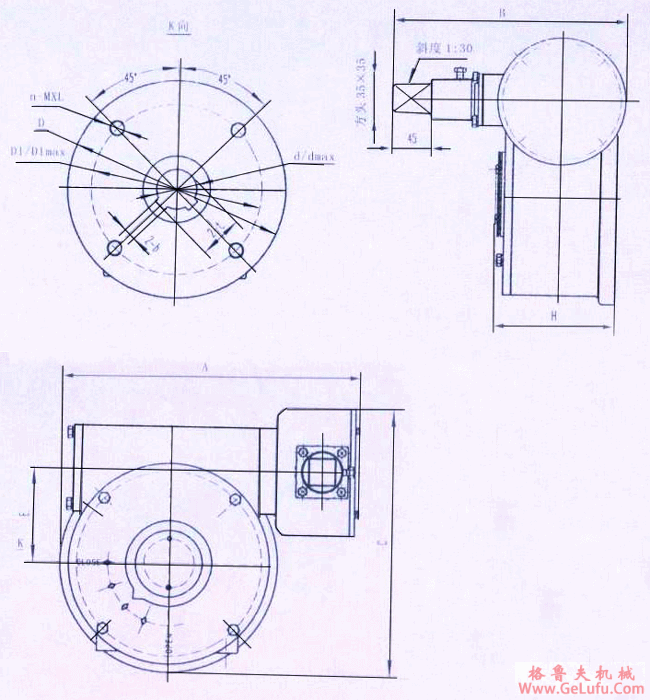

型号 |
适用通径ND |
d |
dmax |
b |
t+0.2 |
D |
D1 |
D1max |
n-M×L |
A |
B |
C |
E |
H |
速比 |
输出扭矩NM |
重理kg |
|
XDJ24 |
50～60 |
12.7 |
26 |
3 |
14.2 |
77 |
57 |
70 |
4-M6×13 |
182 |
205 |
144 |
45 |
87 |
27:1 |
170 |
7.5 |
|
100 |
15.9 |
5 |
18.2 |
92 |
70 |
4-M8×13 | |||||||||||
|
125～150 |
19.05 |
21.4 | |||||||||||||||
|
XDJ30 |
200 |
22.2 |
30 |
5 |
24.5 |
115 |
89 |
90 |
4-M12×15 |
207 |
227 |
185 |
63 |
92 |
34:1 |
670 |
14.5 |
|
250 |
28.6 |
8 |
31.9 | ||||||||||||||
|
XDJ80 |
300～350 |
31.8 |
45 |
8 |
35 |
140 |
108 |
108 |
4-M12×18 |
241 |
203 |
204 |
78 |
89 |
80:1 |
1200 |
16.5 |
|
XDJ140 |
400 |
33.3 |
54 |
10 |
36.6 |
197 |
158.75 |
170 |
4-M18×26 |
325 |
232 |
306 |
120 |
125 |
140:1 |
2000 |
36 |
|
450 |
38.1 |
41.5 | |||||||||||||||
|
XDJ200 |
500 |
41.3 |
54 |
10 |
44.6 |
197 |
158.7 |
216 |
4-M18×28 |
377 |
296 |
339 |
120 |
152.6 |
200:1 |
4000 |
51 |
|
600 |
50.8 |
16 |
55.1 |
276 |
215.9 |
4-M20×28 | |||||||||||
|
XDJ300 |
700～800 |
55.0 |
66 |
4-16 |
59.3 |
300 |
254 |
254 |
8-M16×25 |
422 |
377 |
420 |
152 |
163 |
300:1 |
7000 |
80.5 |
|
XDJ360 |
900～1050 |
75 |
100 |
4-20 |
79.9 |
360 |
254 |
298 |
8-M16×25 |
454 |
395 |
547 |
190 |
178 |
360:1 |
16000 |
105 |
