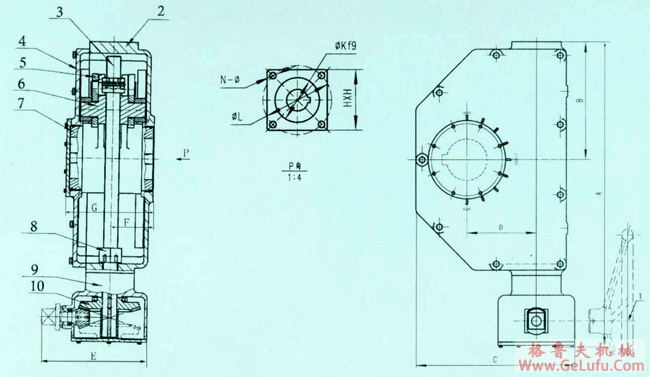

型号 |
A |
B |
C |
D |
E |
F |
G |
H |
φKf9 |
φ1 |
N-φ |
重量kg |
|
XLS1 |
938 |
362 |
493 |
216 |
332 |
130 |
280 |
267×267 |
197 |
304.8 |
4-28.5 |
235 |
|
XLS1B* | ||||||||||||
|
XLS2 |
1180 |
448 |
671 |
266.7 |
467 |
165 |
348 |
381×381 |
260.2 |
425.5 |
4-38.3 |
275 |
|
XLS2B* | ||||||||||||
|
XLS3 |
1539 |
594 |
924 |
355.6 |
567 |
228.3 |
476 |
φ667 |
304.9 |
584.2 |
6-33 |
310 |
|
XLS3B* |
|
10 |
锥齿轮 |
1 |
45GB699-88 |
|
|
9 |
齿轮箱体 |
1 |
HT200GB9438-88 |
|
|
8 |
限位螺母 |
1 |
45GB699-88 |
|
|
7 |
转臂 |
1 |
QT450-10GB1348-88 |
|
|
6 |
滑块 |
1 |
ZCu AL9Mn2 |
|
|
5 |
连杆 |
3 |
45GB699-88 |
|
|
4 |
盖 |
3 |
HT200GB9438-88 |
WCB GB12229-88 |
|
3 |
丝杆 |
1 |
40Cr |
|
|
2 |
壳体 |
1 |
HT200GB9438-88 |
WCB GB12229-88 |
|
1 |
手轮 |
1 |
HT200GB9438-88 |
WCB GB12229-88 |
|
序号 |
名称 |
数量 |
材料 |
可选材质 |
