NMRV型铝合金微型蜗杆减速器同向输出轴伸尺寸及安装规格轴芯尺寸 fax:0312-6784733

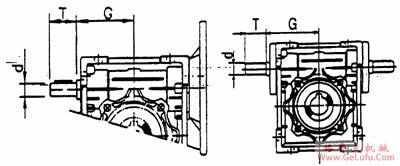

同向输出轴伸尺寸
gelufu.com.cn
|
中心距a |
G |
d(js6) |
T |
|
30 |
45 |
9 |
20 |
|
40 |
59 |
11 |
23 |
|
50 |
64 |
14 |
30 |
|
63 |
75 |
19 |
40 |
|
75 |
90 |
24 |
50 |
|
90 |
108 |
24 |
50 |
|
110 |
135 |
28 |
60 |
格鲁夫配件

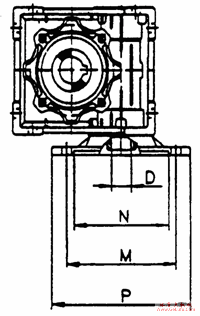

安装规格轴芯尺寸D
|
中
心
距a |
安装规格 |
减速比i | |||||||||||||
|
法兰型号 |
N M P |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
80 |
100 | |||
|
轴芯尺寸D | |||||||||||||||
|
25 |
56B14 |
50 |
65 |
80 |
9 |
9 |
9 |
9 |
|
9 |
9 |
9 |
|
|
|
|
30 |
63B5 |
95 |
115 |
140 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
|
|
|
|
63B14 |
60 |
75 |
90 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
|
|
| |
|
56B14 |
50 |
65 |
80 |
|
|
|
|
|
|
|
|
9 |
9 |
| |
|
40 |
74B5 |
110 |
130 |
160 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
|
|
|
63B5 |
95 |
115 |
140 |
|
|
|
|
|
|
|
|
11 |
11 |
11 | |
|
50 |
80B5 |
130 |
165 |
200 |
19 |
19 |
19 |
19 |
19 |
19 |
19 |
|
|
|
|
|
71B5 |
110 |
130 |
160 |
|
|
|
|
|
|
|
14 |
14 |
14 |
| |
|
63B5 |
95 |
115 |
140 |
|
|
|
|
|
|
|
|
|
|
11 | |
|
63 |
90B35 |
130 |
165 |
200 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
|
|
|
|
|
80B5 |
130 |
165 |
200 |
|
|
|
|
|
|
|
19 |
19 |
|
| |
|
71B5 |
110 |
130 |
160 |
|
|
|
|
|
|
|
|
|
14 |
14 | |
|
75 |
100/112B35 |
180 |
215 |
250 |
28 |
28 |
28 |
28 |
|
28 |
|
|
|
|
|
|
90B35 |
130 |
165 |
200 |
|
|
|
|
24 |
|
24 |
24 |
24 |
|
| |
|
80B5 |
130 |
165 |
200 |
|
|
|
|
|
|
|
|
|
19 |
19 | |
|
90 |
100/112B35 |
180 |
215 |
250 |
28 |
28 |
28 |
28 |
28 |
28 |
28 |
28 |
|
|
|
|
90B35 |
130 |
165 |
200 |
|
|
|
|
|
|
|
|
24 |
24 |
| |
|
80B5 |
130 |
165 |
200 |
|
|
|
|
|
|
|
|
|
|
19 | |
|
110 |
132B35 |
230 |
265 |
300 |
38 |
38 |
38 |
38 |
38 |
|
|
|
|
|
|
|
100/112B35 |
180 |
215 |
250 |
|
|
|
|
|
28 |
28 |
28 |
28 |
|
| |
|
90B35 |
130 |
165 |
200 |
|
|
|
|
|
|
|
|
|
24 |
24 | |
|
130 |
132B35 |
230 |
265 |
300 |
38 |
38 |
38 |
38 |
38 |
38 |
38 |
38 |
|
|
|
|
100/112B35 |
180 |
215 |
250 |
|
|
|
|
|
|
|
|
28 |
28 |
28 | |
