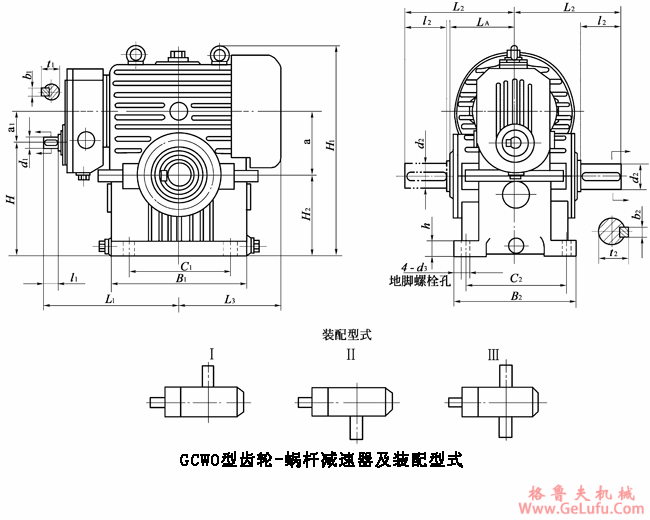

GCWO100-GCWO250型低速级蜗杆在蜗轮之上的齿轮-蜗杆减速器的装配形式与主要尺寸
gelufu
格鲁夫
|
型号尺寸 |
a |
a1 |
i=35.5～56、100、112 |
i=63～90、125～180 | ||||||||
|
d1 |
l1 |
b1 |
t1 |
L1 |
d1 |
l1 |
b1 |
t1 |
L1 | |||
|
GCWO100 |
100 |
63 |
22j6 |
36 |
6 |
24.5 |
255 |
19j6 |
28 |
6 |
21.5 |
247 |
|
GCWO125 |
125 |
63 |
22j6 |
36 |
6 |
24.5 |
273 |
19j6 |
28 |
6 |
21.5 |
265 |
|
GCWO160 |
160 |
80 |
28j6 |
42 |
8 |
31 |
329 |
24j6 |
36 |
8 |
27 |
323 |
|
GCWO200 |
200 |
100 |
42k6 |
82 |
12 |
45 |
443 |
28j6 |
42 |
8 |
31 |
403 |
|
GCWO250 |
250 |
125 |
48k6 |
82 |
14 |
51.5 |
538 |
38k6 |
58 |
10 |
41 |
514 |
手机：13331225020
|
型号尺寸 |
i=200～315 |
d2 |
l2 |
b2 |
t2 |
L2 |
L3 |
L4 | ||||
|
d1（j6） |
l1 |
b1 |
t1 |
L1 | ||||||||
|
GCWO100 |
14 |
25 |
5 |
16 |
244 |
48k6 |
82 |
14 |
51．5 |
212 |
180 |
121 |
|
GCWO125 |
14 |
25 |
5 |
16 |
262 |
55m6 |
82 |
16 |
59 |
222 |
202 |
133 |
|
GCWO160 |
19 |
28 |
6 |
21.5 |
315 |
65m6 |
105 |
18 |
69 |
270 |
245 |
156 |
|
GCWO200 |
22 |
36 |
6 |
24.5 |
397 |
80m6 |
130 |
22 |
85 |
325 |
295 |
188 |
|
GCWO250 |
28 |
42 |
8 |
31 |
498 |
100m6 |
165 |
28 |
106 |
385 |
360 |
209 |
|
型号尺寸 |
B1 |
B2 |
C1 |
C2 |
h |
H |
H1 |
H2 |
d3 |
质量m/kg |
|
GCWO100 |
225 |
240 |
190 |
200 |
25 |
213 |
380 |
150 |
14.5 |
74 |
|
GCWO125 |
260 |
250 |
220 |
205 |
30 |
218 |
410 |
155 |
18.5 |
107 |
|
GCWO160 |
325 |
300 |
230 |
250 |
35 |
275 |
510 |
195 |
18.5 |
162 |
|
GCWO200 |
400 |
350 |
280 |
300 |
40 |
350 |
655 |
250 |
24 |
293 |
|
GCWO250 |
510 |
410 |
370 |
350 |
45 |
435 |
820 |
310 |
28 |
440 |
